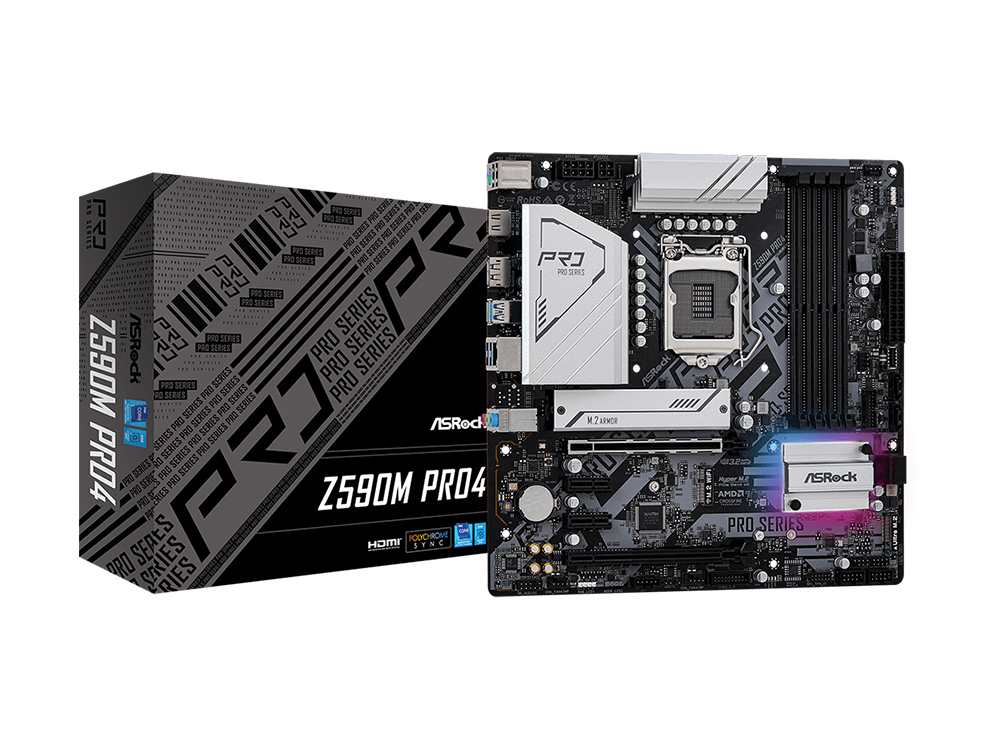

ASRock Z590M Pro4 10th and 11th Gen Micro ATX Motherboard
- Model: Z590M Pro4
- Supports Processors: 10th Gen and 11th Gen Intel Core Processors
- Power Design: 12 Phase Dr.MOS Power Design
- Memory Support: DDR4 4800MHz (OC)
- Graphics Output: HDMI, DisplayPort
Out of stock
৳ 17,700
Out of stock
Basic Information | ||
Supported CPU | – Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) – Digi Power design – 12 Power Phase design – Supports Intel Turbo Boost Max 3.0 Technology – Supports Intel K-Series unlocked CPUs |
|
Chipset | Intel Z590 | |
BIOS | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, GT, DRAM, VPPM, VCCIN_AUX, VCCIO, VCCIO1 2,VCCST, VCCSA Voltage Multi-adjustment |
|
Form Factor | – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm – Solid Capacitor design |
|
Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Supports Surge Protection – Nahimic Audio |
|
Expansion Slots | ||
PCI | 11th Gen Intel Core Processors – 2 x PCI Express x16 Slots (PCIE1/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE4)) 10th Gen Intel Core Processors – 2 x PCI Express x16 Slots (PCIE1/PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE4)) – 2 x PCI Express 3.0 x1 Slots |
|
M.2 Socket | – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) | |
Memory | ||
Type | Dual Channel DDR4 Memory Technology | |
Slots | 4 x DDR4 DIMM Slots | |
Supported Memory | – 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC) – 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC) – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
Maximum Mamory | Max. capacity of system memory: 128GB | |
Graphics | ||
Graphics | – 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics – Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 – Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc – Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers – Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) – Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports |
|
Connector & Ports | ||
HDMI | 1 x HDMI Port | |
Display Port (s) | 1 x DisplayPort 1.4 | |
USB (s) | Connector: – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) Rear Panel I/O: |
|
LAN Port (s) | – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
Supported Storage | – 4 x SATA3 6.0 Gb/s Connectors – 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with 11th Gen Intel Core Processors) or Gen3x4 (32 Gb/s) (with 10th Gen Intel Core Processors) – 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
|
Audio | Connector – 1 x Front Panel Audio Connector Rear Panel I/O |
|
Internal I/O Ports | Connector: – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 2 x RGB LED Headers – 2 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin) – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) Rear Panel I/O |
|
Warranty Information | ||
Manufacturing Warranty | 03 years warranty | |
Others | ||
Bundled Software | – ASRock Motherboard Utility (A-Tuning) – ASRock Polychrome SYNC – ASRock XFast LAN |
