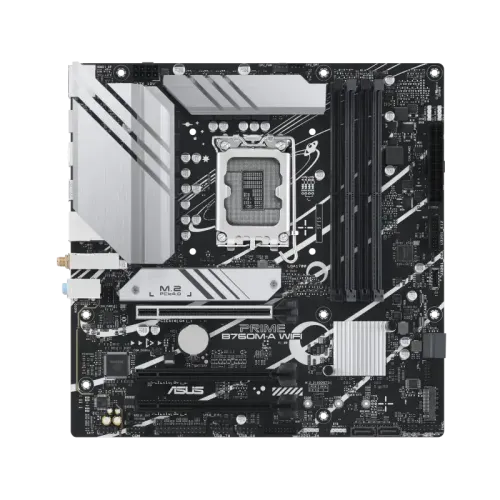

Asus PRIME B760M-A WIFI mATX Motherboard
- Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
- Supported Memory: 4 x DDR5, Max. 128GB, 7200+(OC)
- Graphics Output: 1 x DisplayPort, 2 x HDMI
- Features: Realtek 2.5Gb Ethernet, Wi-Fi 6
৳ 27,500
Asus PRIME B760M-A WIFI mATX Motherboard
The ASUS motherboard, designed for Intel Socket LGA1700, delivers a powerful foundation for 14th, 13th, and 12th Gen Intel Core processors, as well as Pentium Gold and Celeron processors. Boasting a compact microATX form factor measuring 9.6 inches by 9.6 inches, the board features an Intel B760 chipset and a 128 Mb Flash ROM UEFI AMI BIOS for efficient and reliable system management.
With support for DDR5 memory up to a maximum of 128GB and speeds ranging from 4800MHz to 7200MHz (OC), the motherboard incorporates advanced memory technologies such as OptiMem II and Intel Extreme Memory Profile (XMP), ensuring optimal performance. Graphics capabilities are enhanced with a DisplayPort and two HDMI ports, supporting a maximum resolution of 4K@60Hz.
The motherboard provides extensive connectivity options, including a Realtek 2.5Gb Ethernet port for high-speed networking, Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with Bluetooth v5.2 for wireless communication, and a variety of USB ports, both at the rear and front, catering to diverse peripheral needs.
Storage flexibility is offered through 2 M.2 slots supporting PCIe 4.0 x4 mode and 4 SATA 6Gb/s ports, with Intel Rapid Storage Technology enabling RAID configurations. The audio system, driven by the Realtek 7.1 Surround Sound High Definition Audio CODEC, ensures an immersive audio experience with features like jack-detection, multi-streaming, and front panel jack-retasking.
Internally, the motherboard provides several headers for fans, power connectors, USB ports, and more, facilitating efficient cable management. Special features such as ASUS 5X PROTECTION III, ASUS Q-Design elements, and ASUS Thermal Solution with M.2 heatsinks contribute to the motherboard’s durability, stability, and user-friendly design. The bundled ASUS software, including Aura Sync for RGB customization, complements the hardware features.
Backed by a 3-year manufacturing warranty, this ASUS motherboard is a reliable and feature-rich choice for users seeking a compact yet powerful foundation for their Intel LGA1700 processors.
| Supported CPU | Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
| Chipset | Intel B760 Chipset |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor |
| 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| – Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| – Audio Shielding | |
| – Premium audio capacitors | |
| – Dedicated audio PCB layers | |
| PCI | Intel 13th & 12th Gen Processors |
| 1 x PCIe 4.0 x16 slot | |
| Intel B760 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 4.0 x16 slot (supports x1 mode) | |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/4800MHz Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| OptiMem II | |
| Maximum Memory | Max. 128GB |
| Graphics | 1 x DisplayPort |
| 2 x HDMI ports | |
| HDMI | 2 x HDMI port |
| Display Port (s) | 1 x DisplayPort |
| USB (s) | Rear USB (Total 6 ports) |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A ) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 10 ports) | |
| 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C) | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| 1 x USB 2.0 header supports 1 additional USB 2.0 port | |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Wireless Communication module | Wi-Fi 6 |
| 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5GHz frequency band | |
| Bluetooth v5.2 | |
| Supported Storage | Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* |
| Intel 13th & 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| Intel B760 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 2 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| 1 x USB 2.0 header supports 1 additional USB 2.0 port | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x LPT header | |
| 1 x S/PDIF Out header | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Special Features | ASUS 5X PROTECTION III |
| – DIGI+ VRM | |
| – LANGuard | |
| – Overvoltage Protection | |
| – SafeSlot Core+ | |
| – Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| – Q-DIMM | |
| – Q-LED Core | |
| – Q-Slot | |
| ASUS Thermal Solution | |
| – M.2 heatsink | |
| – VRM heatsink design | |
| ASUS EZ DIY | |
| – ProCool | |
| Aura Sync | |
| – Aura RGB header | |
| – Addressable Gen 2 headers | |
| Bundled Software | ASUS 5X PROTECTION III |
| – DIGI+ VRM | |
| – LANGuard | |
| – Overvoltage Protection | |
| – SafeSlot Core+ | |
| – Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| – Q-DIMM | |
| – Q-LED Core | |
| – Q-Slot | |
| ASUS Thermal Solution | |
| – M.2 heatsink | |
| – VRM heatsink design | |
| ASUS EZ DIY | |
| – ProCool | |
| Aura Sync | |
| – Aura RGB header | |
| – Addressable Gen 2 headers | |
| Manufacturing Warranty | 3 years |
