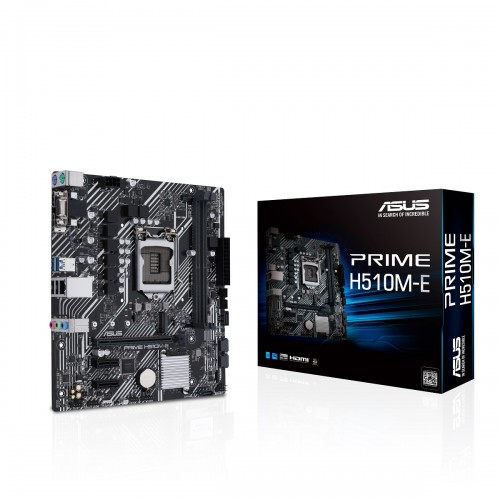

Asus Prime H510M-E Intel 10th and 11th Gen Micro ATX Motherboard
,

Asus Prime H510M-E Intel 10th and 11th Gen Micro ATX Motherboard

  • Product: Prime H510M-E
  • Supported CPU: Supports 10th and 11th Gen Intel Core Processors
  • Next-gen connectivity
  • Comprehensive cooling
  • Enhanced power solution
Add to Wishlist
Compare

৳ 9,900 ৳ 10,500

Add to Wishlist
Compare
Basic Information
Supported CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H510 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX: 22.6cm x 21.1cm
Expansion Slots
PCI Intel 11th & 10th Gen Processors
1 x PCIe 4.0/ 3.0 x16 slot
– Intel 11th Gen processors support PCIe 4.0 x16
– Intel 10th Gen processors support PCIe 3.0 x16
Intel H510 Chipset
2 x PCIe 3.0 x1 slots
M.2 Socket Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H510 Chipset
M.2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes)
Memory
Type DDR4
Slots 2 x DIMM
Supported Memory DDR4 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
10th Gen Intel Core i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
11th Gen Intel processors support 2933/ 2800/ 2666/ 2400/ 2133 natively.
Maximum Memory 64GB (32 GB single DIMM capacity)
Graphics
Graphics 1 x DisplayPort 1.4
1 x D-Sub
1 x HDMI 1.4/ 2.0
Connector & Ports
HDMI 1 x HDMI 2.0
Display Port (s) 1 x DisplayPort 1.4
D-Sub (s) 1 x D-Sub
USB (s) Rear USB:Total 4 ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) 1 x Intel I219-V 1Gb Ethernet
Supported Storage Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H510 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Audio Realtek ALC897/ 887 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium Japanese audio capacitors
– Dedicated audio PCB layers
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty 3 Years
