ASUS PRIME Z790-P WIFI-CSM Intel 13th Gen ATX Motherboard
,

ASUS PRIME Z790-P WIFI-CSM Intel 13th Gen ATX Motherboard

  • Chipset: Intel Z790 Chipset for 13th Gen, 12th Gen, Pentium, Celeron Processors
  • Socket: Intel Socket LGA1700
  • m.2 Slots: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • USB Ports: 9x Front ports, 8x Rear ports
  • Memory: 4 x DIMM, Max. 128GB, DDR5
Compare

৳ 40,000

Compare

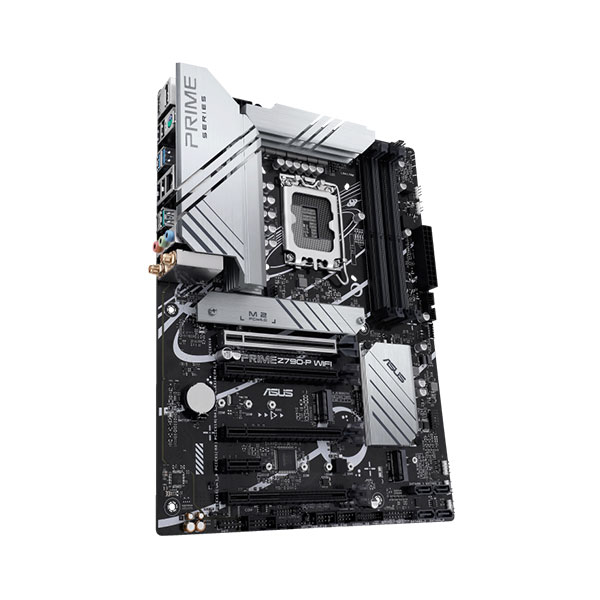

ASUS PRIME Z790-P WIFI-CSM Intel 13th Gen ATX Motherboard

The ASUS PRIME Z790-P WIFI-CSM motherboard is a powerful and versatile ATX motherboard designed to meet the demands of both gaming and productivity. Featuring support for 13th Gen Intel Core processors, it utilizes the Intel Z790 chipset and LGA1700 socket, ensuring compatibility with a range of CPU options, including 12th Gen Intel Core, Pentium Gold, and Celeron processors. With a maximum memory capacity of 128GB across 4 DIMM slots, supporting DDR5 memory at speeds up to 7200+(OC), it offers a robust foundation for high-performance computing.

Graphics capabilities include a DisplayPort and HDMI port, supporting resolutions up to 4K@60Hz. The motherboard features expansion slots, including one PCIe 5.0 x16 slot for 13th & 12th Gen processors and three PCIe 4.0 x16 slots (support x4 mode) from the Intel Z790 chipset. Storage options are abundant with three M.2 slots supporting various PCIe modes and four SATA 6Gb/s ports.

Connectivity is a strong suit, with a Realtek 2.5Gb Ethernet port and advanced wireless capabilities, including Wi-Fi 6 and Bluetooth v5.2. The rear and front USB ports, along with a variety of internal connectors, ensure comprehensive connectivity for various peripherals.

Designed with user-friendly features, the motherboard includes ASUS 5X PROTECTION III for enhanced durability, ASUS Q-Design for easy installation, and ASUS Thermal Solution with flexible M.2 heatsinks and VRM heatsink design. The EZ DIY features, such as ProCool connectors and Aura Sync RGB headers, provide customization options and ease of use.

The motherboard comes with ASUS exclusive software, including Armoury Crate, AI Suite 3, and Aura Sync for system optimization and RGB lighting control. The UEFI BIOS offers intuitive control, and additional software like ASUS CPU-Z and MyASUS enhances system management.

With a comprehensive set of features, ASUS PRIME Z790-P WIFI-CSM offers a reliable platform for both gamers and professionals alike. Backed by a 3-year brand warranty, it ensures durability and performance for a wide range of computing needs.

Categories: , Tags: , , , ,
Model PRIME Z790-P WIFI-CSM
CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® Z790 Chipset
Memory 4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 1 x DisplayPort**
1 x HDMI® port***

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
3 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet 1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2
USB Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
* USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ (USB4®) Header
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-Slot
– Q-LED Core
ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB headers
– Addressable Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
AI Suite 3
-TurboV EVO
-PC Cleaner
-DIGI+ VRM
ASUS CPU-Z
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Operating System Windows® 11, Windows® 10 64-bit
Form Factor ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Warranty 3 Years Brand Warranty.
