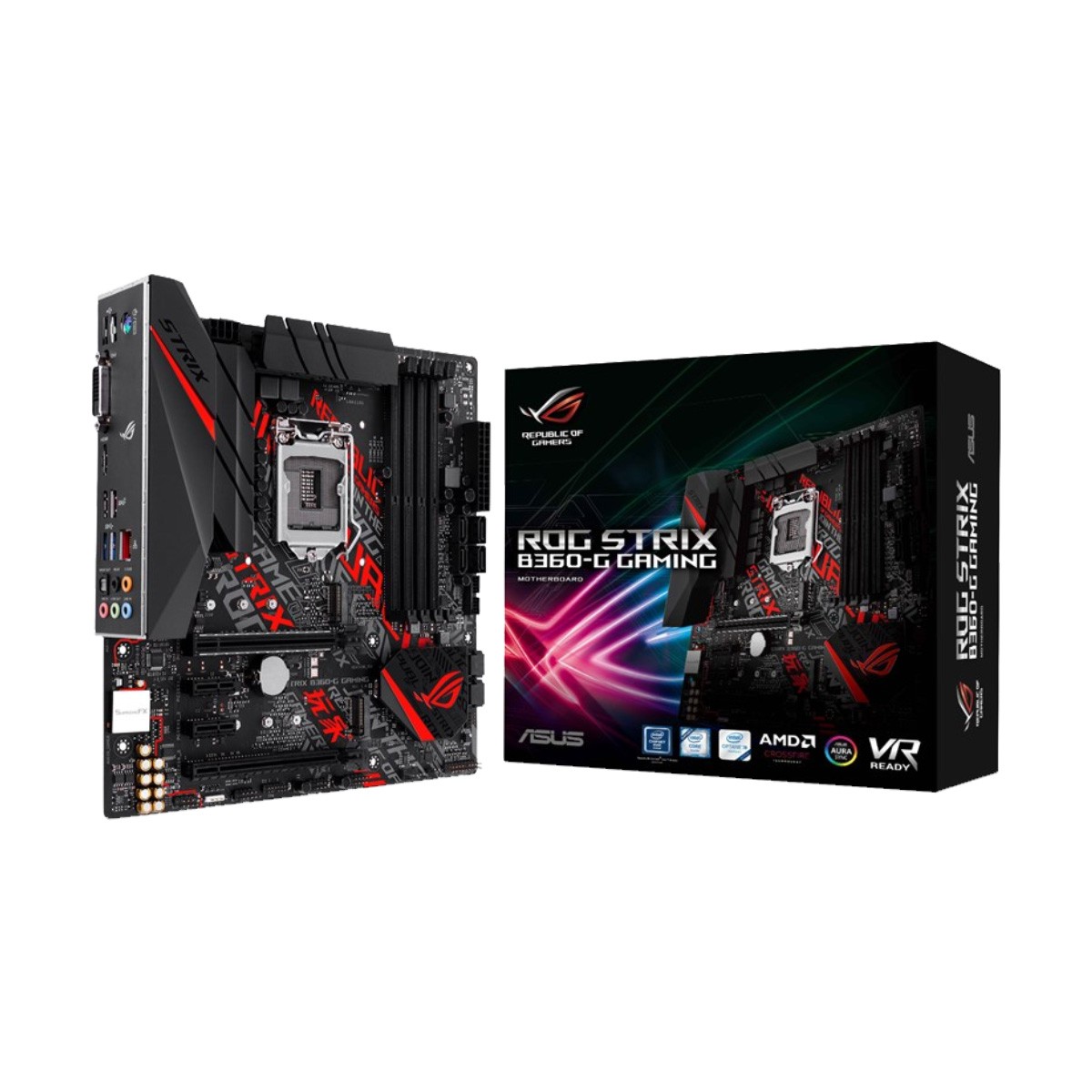

Asus ROG STRIX B360-G GAMING DDR4 8th/9th Gen LGA1151 Socket Mainboard
,

Asus ROG STRIX B360-G GAMING DDR4 LGA1151 Socket Motherboard (8th/9th Gen)

Asus
  • Model: Asus ROG STRIX B360-G
  • Chipset: Intel B360
  • Socket: Intel Socket 1151 (Supports 8th Generation Core Processors)
  • RAM Slots: 4 x DIMM
  • PCIe Slots: 4 x PCIe
Compare
Availability:

Out of stock

৳ 11,500

Out of stock

Compare
Basic Information
Supported CPU Intel® for 8th Generation Core™ Processors
Supports Intel® Turbo Boost Technology 2.0
Chipset Intel® B360
BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI
6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan
Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS
DRAM SPD (Serial Presence Detect) memory information, ASUS Secure
Erase, ASUS User Profile, F4 AURA ON/OFF, F9 Search
Form Factor mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Expansion Slots
PCI 1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (max at x4 mode)
2 x PCIe 3.0/2.0 x1
M.2 Socket 1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM header
Memory
Type Dual Channel Memory Architecture
Slots 4 x DIMM, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supported Memory Supports Intel® Extreme Memory Profile (XMP)
DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Maximum Memory 64GB
Graphics
Graphics Supports AMD 2-Way CrossFireX Technology
Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Connector & Ports
HDMI 1 x HDMI
Display Port (s) 1 x DVI
USB (s) 2 x USB 3.1 Gen 2
LAN Port (s) Anti-surge LAN (RJ45) port
Supported Storage 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
6 x SATA 6Gb/s port(s)
Intel® Optane™ Memory Ready *
Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
– Dual OP Amplifiers
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB (Line-out at rear) 113 dB SNR recording input
Audio Feature :
– SupremeFX Shielding™ Technology
– Optical S/PDIF out port(s) at back panel
– LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
– Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
– Sonic Radar III
– Sonic Studio III + Sonic Studio Link
Internal I/O Ports 1 x AAFP connector
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel connector(s)
1 x Clear CMOS jumper(s)
Warranty Information
Manufacturing Warranty 03 years
