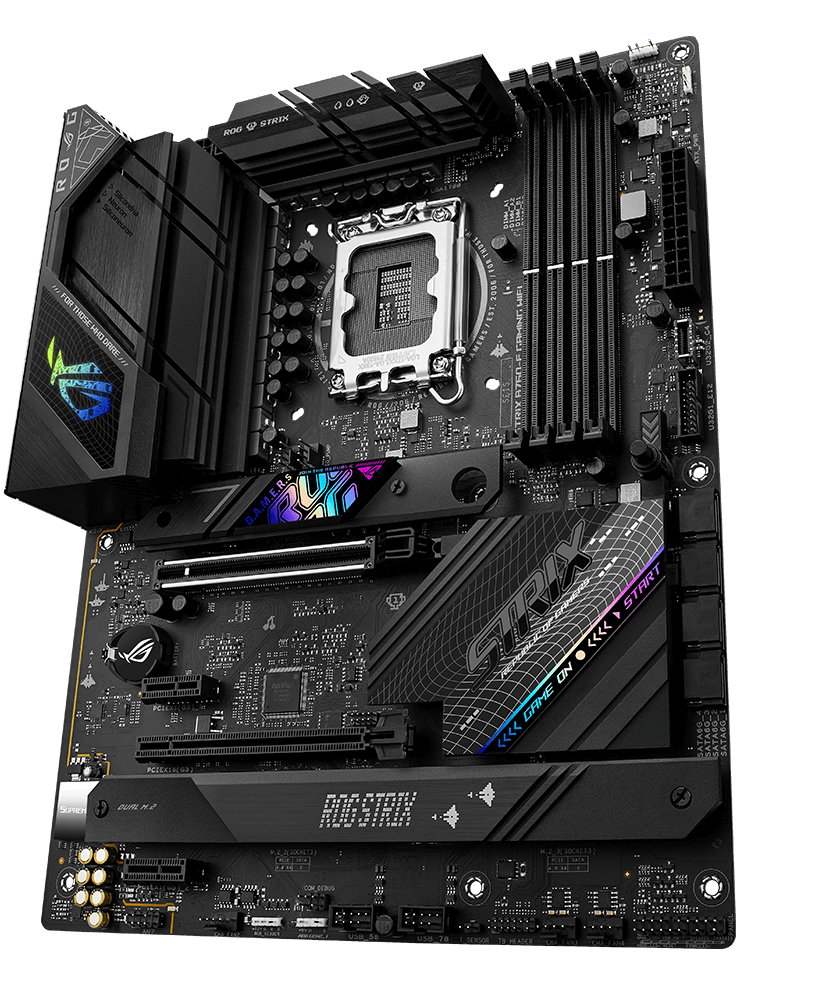

Asus ROG STRIX B760 F GAMING Wi Fi 6E 1 1703136762
, ,

ASUS ROG STRIX B760-F GAMING WIFI Intel 13th Gen ATX Motherboard

  • Chipset: Intel B760 Chipset for 13th Gen, 12th Gen, Pentium, Celeron Processors
  • Socket: Intel Socket LGA1700
  • m.2 Slots: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • USB Ports: 7x Front ports, 8x Rear ports
  • Memory: 4 x DIMM, Max. 128GB, DDR5
Add to Wishlist
Compare

৳ 40,900

Add to Wishlist
Compare

ASUS ROG STRIX B760-F GAMING WIFI Intel 13th Gen ATX Motherboard

The ROG STRIX B760-F GAMING WIFI motherboard from ASUS is a powerhouse designed to accommodate 13th, 12th Gen Intel Core processors, Pentium Gold, and Celeron processors, featuring the Intel Socket LGA1700. With support for Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, this motherboard ensures optimal performance for a range of CPU types.

Equipped with the Intel B760 Chipset, this ATX form factor motherboard offers robust memory capabilities with 4 DIMM slots supporting DDR5 memory at speeds ranging from 4800MHz to an overclocked 7800MHz. The Dual Channel Memory Architecture, Intel Extreme Memory Profile (XMP), and OptiMem II contribute to an efficient and high-performance memory setup.

Graphics options include a DisplayPort and HDMI port, with support for resolutions up to 8K@60Hz and 4K@60Hz, respectively. The motherboard features expansion slots, including a PCIe 5.0 x16 slot supporting x16 mode for Intel 13th Gen processors and a PCIe 3.0 x16 slot supporting x4 mode, along with two PCIe 3.0 x1 slots.

Storage capabilities are extensive, with three M.2 slots supporting PCIe 4.0 x4 mode, and four SATA 6Gb/s ports, complemented by Intel Rapid Storage Technology supporting SATA RAID 0/1/5/10. Network connectivity is robust with Intel 2.5Gb Ethernet and ASUS LANGuard, while the motherboard also features Wi-Fi 6E and Bluetooth v5.3.

A rich array of USB ports, including USB 3.2 Gen 2×2, Gen 2, and Gen 1, provides versatile connectivity options. The audio experience is enhanced with the ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, featuring Impedance sense, jack-detection, and premium audio components for up to 32-Bit/384 kHz playback.

The rear I/O panel boasts USB ports, DisplayPort, HDMI, Wi-Fi module, Intel 2.5Gb Ethernet, and audio jacks. The internal I/O connectors include headers for fans, power, storage, USB, and more, with additional features like ASUS Q-Design, Extreme Engine Digi+, and Aura Sync for customizable RGB lighting.

This motherboard comes with ASUS Exclusive Software, including GameFirst VI, ROG CPU-Z, Sonic Studio III, Sonic Radar III, DTS Sound Unbound, Armoury Crate, Aura Creator, and more. The BIOS is a 256 Mb Flash ROM UEFI AMI BIOS, and the motherboard is equipped with various ASUS EZ DIY features. ASUS provides a comprehensive accessory package, and the product is backed by a 3-year brand warranty. Overall, the ROG STRIX B760-F GAMING WIFI is a high-performance motherboard suitable for gaming enthusiasts and power users.

Categories: , , Tags: , , , , , , ,
Model ROG STRIX B760-F GAMING WIFI
CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® B760 Chipset
Memory 4 x DIMM, Max. 128GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/
5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 1 x DisplayPort**
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports max. 8K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0×16 slot (supports x16 mode)**
Intel® B760 Chipset**
1 x PCIe 3.0 x16 slot (supports x4 mode)***
2 x PCIe 3.0 x1 slots
Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 )
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet 1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
6 x USB 3.2 Gen 1 ports (6 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback”
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
6 x USB 3.2 Gen 1 ports (6 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks *
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 xThunderbolt™ (USB4®) header
Special Features Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Software Features ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– Performance And Power Saving Utility
– DIGI+ VRM
– PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
MemTest86
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME
Accessories Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 Q-Latch package
2 x M.2 Rubber Package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Documentation
1 x User guide
Operating System Windows® 11, Windows® 10 64-bit
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty 3 Years Brand Warranty.
