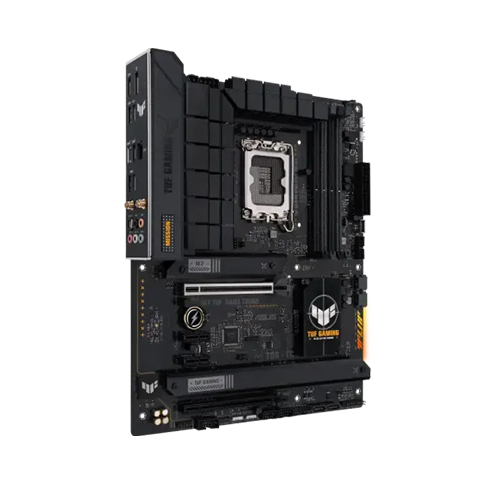

ASUS TUF GAMING B760-PLUS WIFI Intel 13th Gen ATX Motherboard
- Chipset: Intel B760 Chipset for 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron Processors
- Socket: LGA1700
- M.2 Slots: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
- USB Ports: 7x Front ports, 6x Rear ports
- Memory: 4 x DIMM, Max. 192GB, DDR5
৳ 31,300
ASUS TUF GAMING B760-PLUS WIFI Intel 13th Gen ATX Motherboard
The ASUS TUF GAMING B760-PLUS WIFI motherboard is a robust and feature-packed solution for Intel LGA1700 processors, including 13th Gen Intel Core and 12th Gen Intel Core, Pentium Gold, and Celeron variants. The motherboard supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, enhancing overall system performance.
Powered by the Intel B760 chipset, the motherboard offers a versatile memory configuration with 4 DIMM slots supporting up to 192GB of DDR5 memory. The memory specifications include speeds ranging from 4800 to 7200 MT/s, and the dual-channel memory architecture ensures efficient data handling. Graphics capabilities are provided through a DisplayPort and HDMI port, supporting up to 4K@60Hz resolution.
Expansion slots include a PCIe 5.0 x16 slot for Intel 13th Gen processors and PCIe 3.0 x16 and PCIe 3.0 x1 slots for the Intel B760 chipset, offering flexibility for additional components. Storage options consist of 3 M.2 slots (supporting PCIe 4.0 x4 mode) and 4 SATA 6Gb/s ports with Intel Rapid Storage Technology supporting RAID configurations.
Networking features include a Realtek 2.5Gb Ethernet port and Wi-Fi 6 (802.11 a/b/g/n/ac/ax) for high-speed and reliable connectivity. The rear I/O and internal connectors provide a comprehensive range of USB ports, fan headers, power connectors, and more. The audio system, driven by Realtek 7.1 Surround Sound High Definition Audio CODEC, ensures an immersive audio experience.
The motherboard incorporates ASUS TUF PROTECTION features, such as DIGI+ VRM, ESD Guards, TUF LANGuard, and SafeSlot Core+, ensuring durability and stability. ASUS Q-Design elements, ASUS Thermal Solution with M.2 heatsinks and VRM heatsink design, ASUS EZ DIY features, and Aura Sync for RGB customization contribute to the motherboard’s user-friendly and aesthetic appeal.
Software features include ASUS-exclusive applications like Armoury Crate, AI Suite 3, and TUF GAMING CPU-Z, enhancing system management and customization. The motherboard comes with various accessories, including SATA cables, Wi-Fi antenna, M.2 Rubber Packages, and more. Operating with Windows 11 and Windows 10 64-bit, the ATX form factor makes it suitable for standard-sized builds. The motherboard is backed by a 3-year brand warranty, providing users with confidence in its reliability and performance.
| Model | TUF GAMING B760-PLUS WIFI |
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** 1 x HDMITM port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMITM 2.1. |
| Expansion Slots | Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots* * PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode. – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.” |
| USB | Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers – Audio cover |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header |
| Special Features | ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – CPU Socket lever protector – ProCool – Pre-mounted I/O shield – SafeSlot Core+ – SafeDIMM Aura Sync – Aura RGB header – Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – DIGI+ VRM – PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x TUF Gaming sticker 2 x M.2 Rubber Packages 1 x Screw package for M.2 SSD Documentation 1 x TUF Certification card 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years Brand Warranty. |
