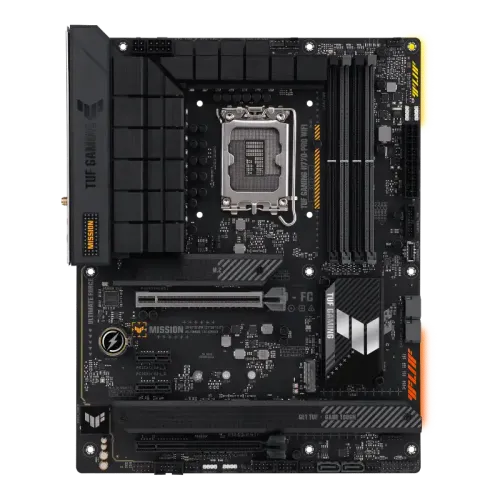

ASUS TUF GAMING H770-PRO WIFI Intel 13th Gen ATX Motherboard

  • Chipset: Intel H770 Chipset for 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron Processors
  • Socket: LGA1700
  • m.2 Slots: Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
  • USB Ports: 7x Front ports, 7x Rear ports
  • Memory: 4 x DIMM, Max. 192GB, DDR5
Add to Wishlist
Compare

৳ 34,800

Add to Wishlist
Compare

ASUS TUF GAMING H770-PRO WIFI Intel 13th Gen ATX Motherboard

The ASUS TUF GAMING H770-PRO motherboard is a robust ATX form factor solution designed to support 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket. With its Intel H770 chipset, this motherboard delivers stability and performance for gaming and multitasking applications. The motherboard boasts an immersive audio experience with Realtek 7.1 Surround Sound High Definition Audio CODEC, supporting up to 24-Bit/192 kHz playback and featuring audio shielding, premium capacitors, and dedicated audio PCB layers.

Equipped with PCIe slots, including one PCIe 5.0 x16 slot for Intel 13th Gen processors and one PCIe 4.0 x16 slot supporting x4 mode, the motherboard offers expansion options. The DDR5 memory slots support up to 192GB, with speeds ranging from 4800MHz to an overclocked 7200MHz, ensuring efficient system memory performance. HDMI and DisplayPort outputs enable high-quality visuals, and the rear and front USB ports provide extensive connectivity options, including USB 3.2 Gen 2×2 and USB Type-C.

Networking capabilities include an Intel 2.5Gb Ethernet port and Wi-Fi 6 support, enhancing online connectivity. Storage solutions consist of M.2 slots supporting PCIe 4.0 x4 mode and SATA 6Gb/s ports, with RAID support through Intel Rapid Storage Technology. The motherboard is equipped with various internal connectors for fans, power, storage, USB, and other peripherals, contributing to a well-organized system.

The ASUS TUF GAMING H770-PRO motherboard incorporates ASUS TUF PROTECTION features, including DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, Safeslot Core+, and Stainless-Steel Back I/O, ensuring durability and reliability. ASUS Q-Design elements like M.2 Q-Latch and Q-LED provide ease of installation and troubleshooting, while ASUS Thermal Solution includes M.2 heatsinks and VRM heatsink design for optimal cooling. AURA Sync RGB headers and Addressable Gen 2 headers allow customization of the system’s lighting.

The motherboard comes bundled with exclusive ASUS software, including Armoury Crate, Aura Creator, Fan Xpert 4, Two-Way AI Noise Cancelation, Power Saving, AI Suite 3, DTS Audio Processing, MyAsus, Norton 360 for Gamers, and WinRAR. The UEFI BIOS and ASUS EZ DIY functionalities, such as CrashFree BIOS 3, EZ Flash 3, and UEFI BIOS EZ Mode, contribute to user-friendly system management. Backed by a 3-year brand warranty, the ASUS TUF GAMING H770-PRO motherboard offers a reliable and feature-rich platform for gaming enthusiasts and content creators alike.

Categories: , Tags: , , , , , , , ,
Supported CPU Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
Chipset Intel H770 Chipset
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio Cover
PCI Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel H770 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Type DDR5
Slots 4 x DIMM, Max
Supported Memory 200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Max Memory 192GB,
HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 7 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) 1 x Intel 2.5Gb Ethernet
TUF LANGuard
Wireless Communication module Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2*
Supported Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
Intel H770 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio 5 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Graphics 1 x DisplayPort**
1 x HDMI port***
Special Features ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– Safeslot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeSlot Core+
– SafeDIMM
AURA Sync
– Aura RGB header
– Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4
– Two-Way AI Noise Cancelation
– Power Saving
AI Suite 3
– DIGI+ VRM
– PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Warranty 3 Years Brand Warranty.
