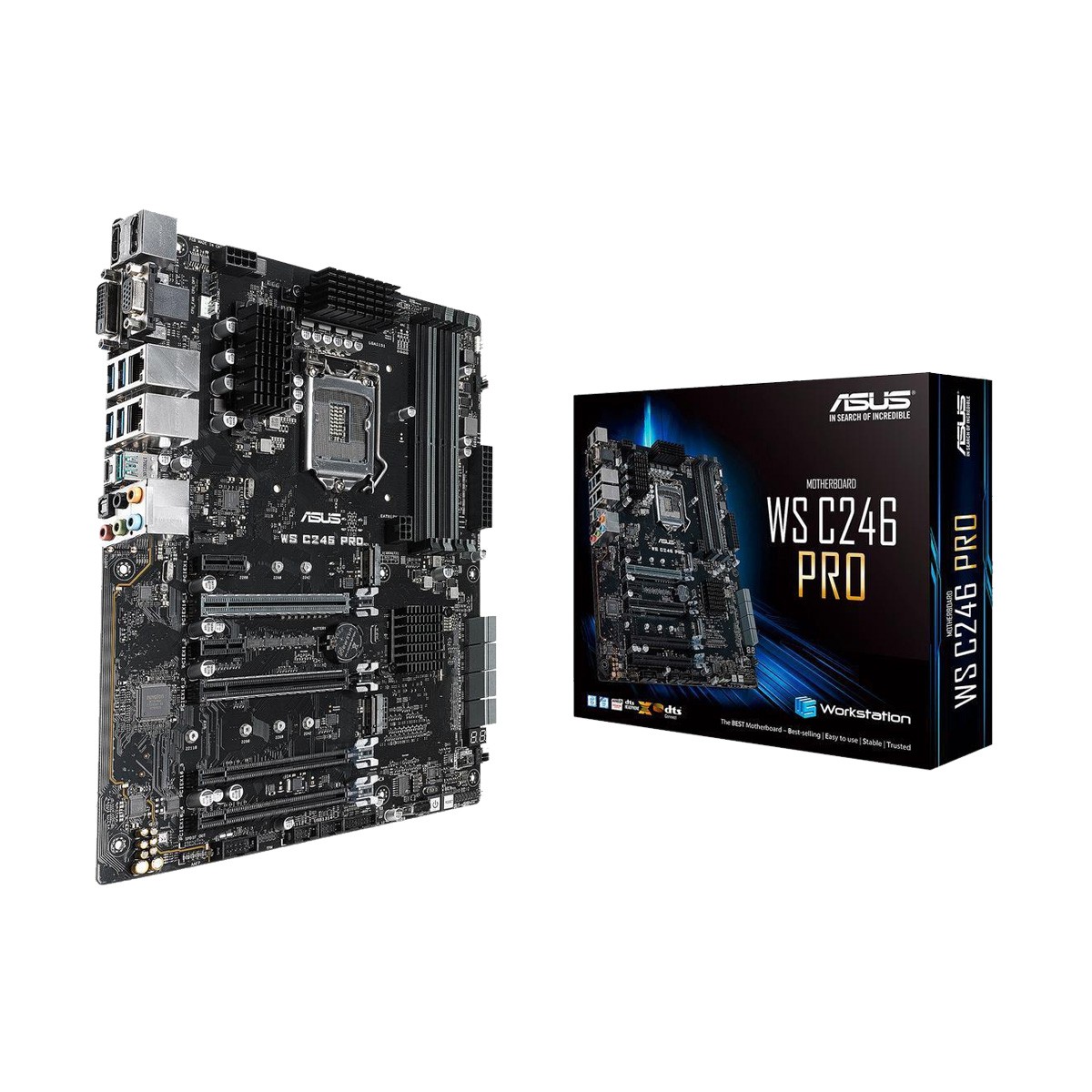

Asus WS C246 Pro DDR4 E-2100 Family/ Mainboard

Asus WS C246 Pro DDR4 E-2100 Family/8th/9th Gen Intel LGA1151 Socket Workstation Mainboard

Asus

Model – Asus WS C246 Pro
CPU Sockets – LGA1151
Chipset – Intel C246 Chipset
Memory Channel – Dual
VGA Port – 1

৳ 21,700

Brand Asus
Model Asus WS C246 Pro
Form factor ATX
Sockets LGA1151
Chipset Intel C246 Chipset
Supported CPU 9th/8th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron / Xeon Processors E-2100 family
RAM type DDR4
RAM bus 2666/2400 /2133MHz
RAM max 64GB
RAM slot 4
PCI Express x16 slot PCI-E x1 (Gen2 X1 Link), PCI-E x16 (Gen3 X16 + X8 Link), PCI-E x16 (Gen3 X8 Link), PCI-E x1 (Gen2 X1 Link), PCI-E x16 (Gen3 X4 Link), PCI-E x4 (Gen1 X4 Link)
SATA port 8 x SATA
M.2 Slot 1 x M.2 Connector (NGFF Type 2280/2260/2242), 1 x M.2 Connector (NGFF Type 22110/2280/2260/2242)
Optane Memory Support Yes
LAN chipset Intel I210AT, i219-LM
USB Port 2 x USB3.1, 4 x USB3.0
VGA port 1
DVI port 1
HDMI port 1
Others 1 x DisplayPort, 2 x M.2, 1 x TPM header, 1 x PSU Power Connector (24-pin ATX power connector), 1 x COM port, 1 x USB BIOS Flashback Button, 8-channel Audio I/O ports (5+1 Audio jacks)
Warranty 3 year
M.2 Slot Yes
