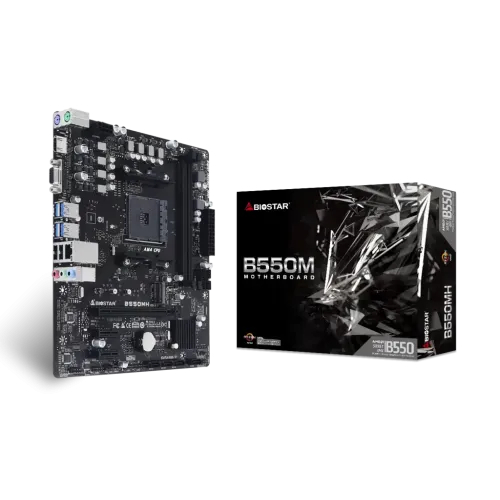

BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard

Key Features

  • Model: B550MH
  • Supported CPU: Ryzen 3rd Gen and 4th Gen processors
  • Supported RAM: 2x DIMM, DDR4 4933+(OC)
  • Graphics Output: 1 x HDMI, 1 x VGA Port
  • Features: 1 x M.2 Slot, Realtek RTL8111H
Compare

৳ 8,400.00

BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard

Basic Information
Supported CPU Socket AM4 supports AMD 3rd Gen Ryzen (Matisse/ Renoir) processors and Ryzen 4th Gen (Vermeer) processors
Support for future AMD Ryzen processors with BIOS update
Chipset AMD B550
Form Factor Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L )
Audio ALC887
7.1 Channels, High Definition Audio, Hi-Fi (Front)
Expansion Slots
PCI 1 x PCIe 4.0/ 3.0 x 16 Slot:
Supports PCIe 4.0 x 16 mode with AMD Ryzen processors. (Matisse only)
Supports PCIe 3.0 x 16 mode AMD Ryzen with Radeon Vega Graphics processors. (Renoir only)
2 x PCIe 3.0 x 1 Slot
Memory
Type DDR4
Slots 2 x DIMM
Supported Memory 4th Gen AMD Ryzen Processors (Vermeer CPUs/ Future APUs):
Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
Each DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module
Maximum Memory Up to 64 GB
Graphics
Graphics By CPU model
Supports DX12
Supports HDCP
Connector & Ports
HDMI 1 x HDMI Port
VGA (s) 1 x VGA Port
USB (s) 8 x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
LAN Port (s) Realtek RTL8111H
10/ 100/ 1000 Mb/s auto-negotiation, Half / Full duplex capability
Supports Super LAN Surge Protection
Supported Storage 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s)
Supports SATA III (6.0Gb/s) SSD
* M.2 (M Key) Socket (M2_PCIe-SATA1):
The bandwidth is dependent on the CPU.
Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse.
Audio 3 x Audio Jack
Internal I/O Ports 4 x SATA III (6.0Gb/s) Connectors
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
2 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x Internal Stereo Speaker Header
1 x COM Port Header
Others
Bundled Software BullGuard
Warranty Information
Manufacturing Warranty 3 Years



The BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard is a high-performance motherboard that supports AMD Ryzen 3rd Gen (Matisse/ Renoir) and 4th Gen (Vermeer) processors. It features an AMD B550 single chip architecture, 2-DIMM DDR4-4933+(OC)/4800(OC)/4600(OC)/4400(OC)/4000(OC)/3800(OC)/3600(OC) /3200/2933/2667/2400/2133/1866 memory support, USB 3.2 Gen1, PCIe M.2 4.0 (64Gb/s), and HDMI 4K resolution support.

The BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard is a great choice for gamers, content creators, and power users who demand high performance and features. It offers a wide range of features that can be used to improve the performance of your system, including:

  • AMD B550 single-chip architecture: This provides a high level of performance and stability for your system.
  • 2-DIMM DDR4-4933+(OC)/4800(OC)/4600(OC)/4400(OC)/4000(OC)/3800(OC)/3600(OC) /3200/2933/2667/2400/2133/1866 memory support: This allows you to use high-speed memory to improve the performance of your system.
  • USB 3.2 Gen1: This provides faster data transfer speeds for your peripherals.
  • PCIe M.2 4.0 (64Gb/s): This provides blazing-fast storage speeds for your NVMe SSDs.
  • HDMI 4K resolution support: This allows you to connect a 4K display to your system for stunning visuals.

The BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard is a great choice for anyone who wants a high-performance motherboard with a wide range of features. It is perfect for gamers, content creators, and power users who demand the best possible performance from their system.

Here are some additional features of the BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard:

  • Dual M.2 slots: This allows you to install two NVMe SSDs for blazing-fast storage speeds.
  • PCIe 4.0 support: This provides the latest and greatest in PCIe connectivity.
  • Audio Boost: This provides high-quality audio for your games and movies.
  • LAN port: This provides fast and reliable internet connectivity.
  • USB ports: This provides plenty of ports for your peripherals.

The BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard is a great choice for anyone who wants a high-performance motherboard with a wide range of features. It is perfect for gamers, content creators, and power users who demand the best possible performance from their system.
