Deepcool, Casing
Compare

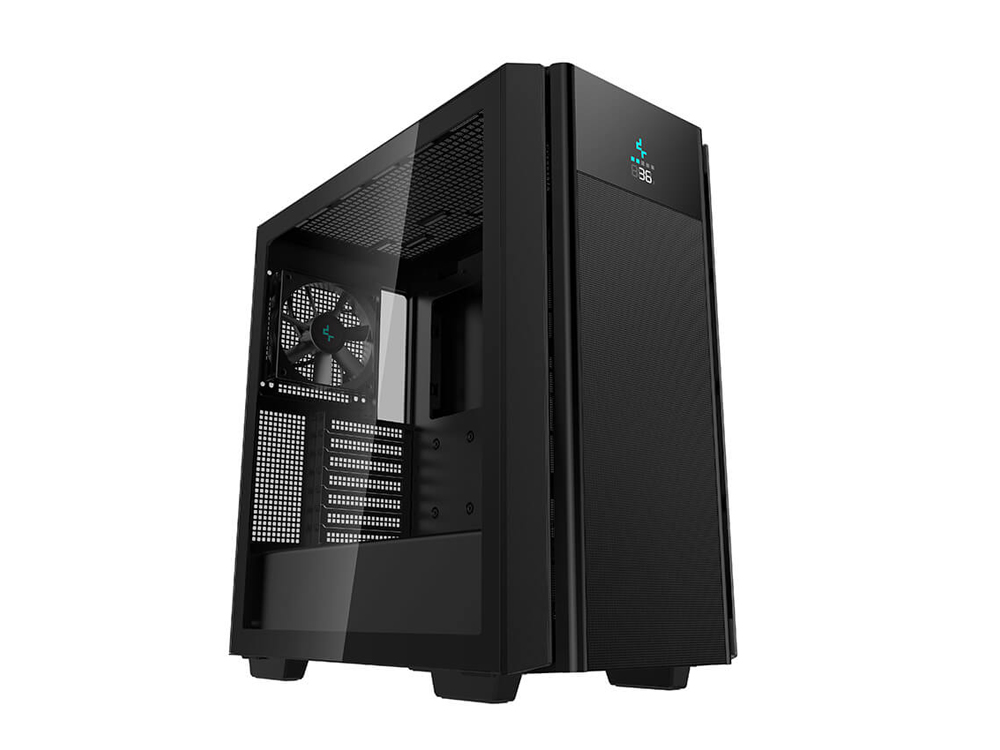

DEEPCOOL CH510 MESH MID-TOWER CASE
- Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX
- Front I/O Ports: USB 3.0 x1, Type-C x1, Audio x1
- Drive Bays: 3.5″ x2
- Expansion Slots: 7 slots
৳ 7,000
DeepCool CH510 Mesh Digital Mid-Tower Atx Case
The DeepCool CH510 MESH DIGITAL is a high airflow mid-tower ATX case with great flexibility and wide component compatibility for any system build. Featuring a display screen that is programmable to monitor internal system temperatures for critical information upfront.
HIGH-AIRFLOW PANEL
The CH510 MESH DIGITAL is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer. The large metal mesh front panel allows vast airflow for optimal system cooling.
MORE CAPACITY, MORE POWER
Big power needs big cooling and the CH510 MESH DIGITAL provides ample mounting locations to install plentiful cooling. Install large radiators up to 360mm either in front or on top, or fit up to 9x 120mm or 5x 140mm cooling fans for extreme airflow.
WIDE AND SPACIOUS INTERIOR
Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CH510 provides ample space without being too bulky.
Gallery
| Product Dimensions | 455×230×470mm(L×W×H) |
| Net Weight | 7.5Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX / E-ATX |
| Front I/O Ports | USB3.0×1、Tpye-c×1、Audio×1 |
| 3.5″ Drive Bays | 2 |
| 2.5″ Drive Bays | 2+1 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Rear: 1×120mm |
| Fan Support | Front: 3×120 / 2×140mm Top: 3×120 / 2×140mm Rear: 1×120 / 1×140mm PSU Shrouded: 2×120mm |
| Radiator Support | Front: 120/140/240/280/360mm Top: 120/140/240/280/360mm Rear: 120/140mm |
| CPU Cooler Height Limit | 175mm |
| GPU Length Limit | 380mm |
| Power Supply Type | ATX PS2 （maximum length: 170mm） |
| EAN Code | 6933412775072 |
| PN Code | R-CH510-BKNSE1-G-1 |
