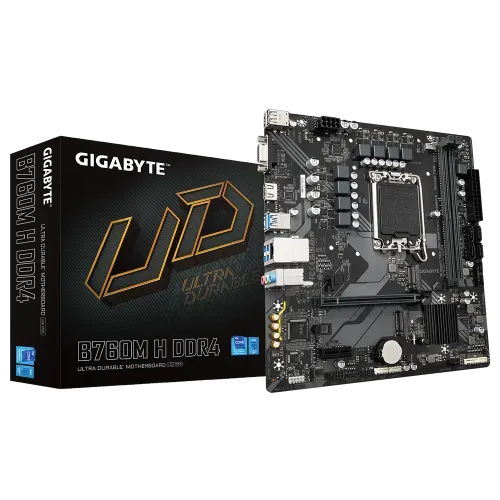

GIGABYTE B760M H DDR4 mATX Motherboard
GIGABYTE B760M H DDR4 mATX Motherboard
,

GIGABYTE B760M H DDR4 mATX Motherboard

  • Processor Support: Intel® Core™ 14th/13th/12th Generation processors
  • VRM Solution: Hybrid 6+1+1 Phases Digital VRM
  • Memory Support: Dual Channel DDR4, XMP Memory Module Support
  • Storage: PCIe 4.0 x4 M.2 Connectors (2)
  • PCIe Slot: PCIe 4.0 x16 Slot with Quick Release Design (EZ-Latch)
Compare

৳ 15,500

Compare
Basic Information
Supported CPU LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Expansion Slots
PCI CPU:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type DDR4
Slots 2
Supported Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 64GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
Connector & Ports
HDMI 1x HDMI
D-Sub (s) 1x D-Sub
USB (s) Chipset:
– 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
– 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage CPU:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
– 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 years
