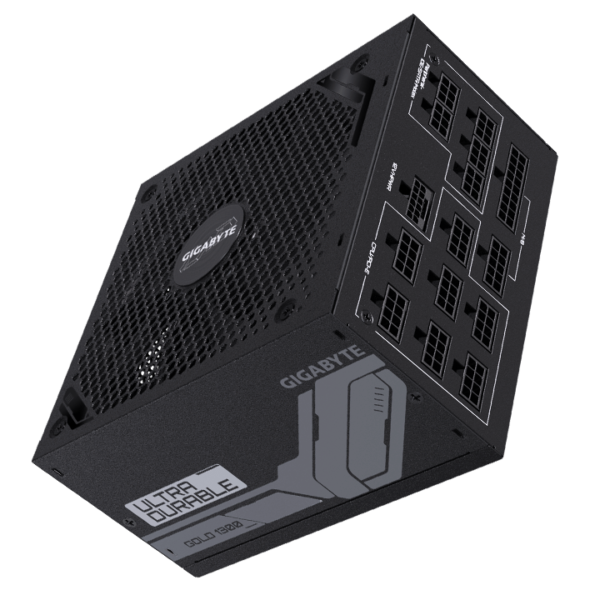

Gigabyte GP-UD1300GM PG5 Full Modular 1300W 80 Plus Gold Certified Power Supply

  • Ultra Durable
  • Main Japanese Capacitors
  • Enhanced Thermal Solution
  • 140mm Double Ball Bearing Fan
  • OVP/OPP/SCP/UVP/OCP/OTP Protection
  • Support PCIe Gen 5.0 Graphics Card
  • Support Intel ATX 3.0 Standard
  • 80 PLUS Gold Certified
  • Fully Modular Design
  • Compact Size
Compare

৳ 18,800.00

Gigabyte GP-UD1300GM PG5 Full Modular 1300W 80 Plus Gold Certified Power Supply

Support PCIe Gen 5.0 graphics card

The UD1300GM PCIE 5.0 can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.

Support Intel ATX 3.0 standard

The UD1300GM PG5 can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.

ULTRA DURABLE

Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 140mm smart double ball bearing fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.

HIGH QUALITY JAPANESE CAPACITORS

The main capacitors use high quality Japanese capacitors to produce efficient performance and ensure longer reliability.

ENHANCED THERMAL SOLUTION

Compared with the standard thermal solution, we have enlarged the heatsink and optimized the airflow. The heat dissipation performance is increased, thus prolonging the service life of the components.

140mm DOUBLE BALL BEARING FAN

The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The double ball bearing fan provides longer and more stable life time.

PROTECTION

To make sure the entire computer system operates stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP, and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

FULLY MODULAR DESIGN

All the black flat cables are modular in design. Installing only the cables you need to reduce clutter, increase the airflow, and improve the chassis thermal performance.

80 PLUS GOLD CERTIFIED

80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. Better power efficiency leads to less power waste, less heat, and less fan noise.

PLENTIFUL POWER SUPPLY

The +12VHPWR and the +12V can provide a total of 1300W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.

COMPACT DESIGN

Leveraging the engineers’ excellent design capabilities, cooling technology and higher-quality materials, GIGABYTE has reduced the length of the power supply to an amazing 160mm compared to traditional design. It can be easily installed in any chassis without space constraints.

Model

GP-UD1300GM PG5

Type

Intel Form Factor ATX 12V v3.0

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

15-6.5A

Input Frequency

60-50 Hz

Output Capacity

1300W

Dimension

150 x 160 x 86 mm

Fan Type

140mm double ball bearing fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

100,000 hours

Protection

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

16ms

Cable Type

Flat, All black

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 650mm*2
PCIe 16 Pin x 1: 700mm*1
PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2
SATA x 12 : 650mm+150mm+150mm+150mm*3
4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
