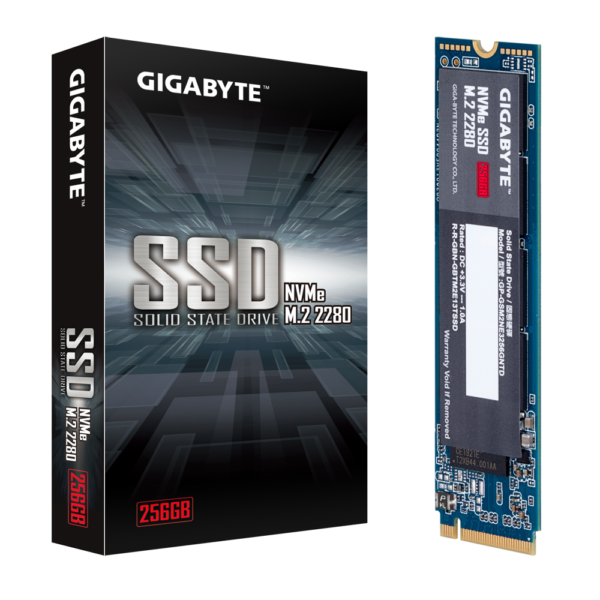

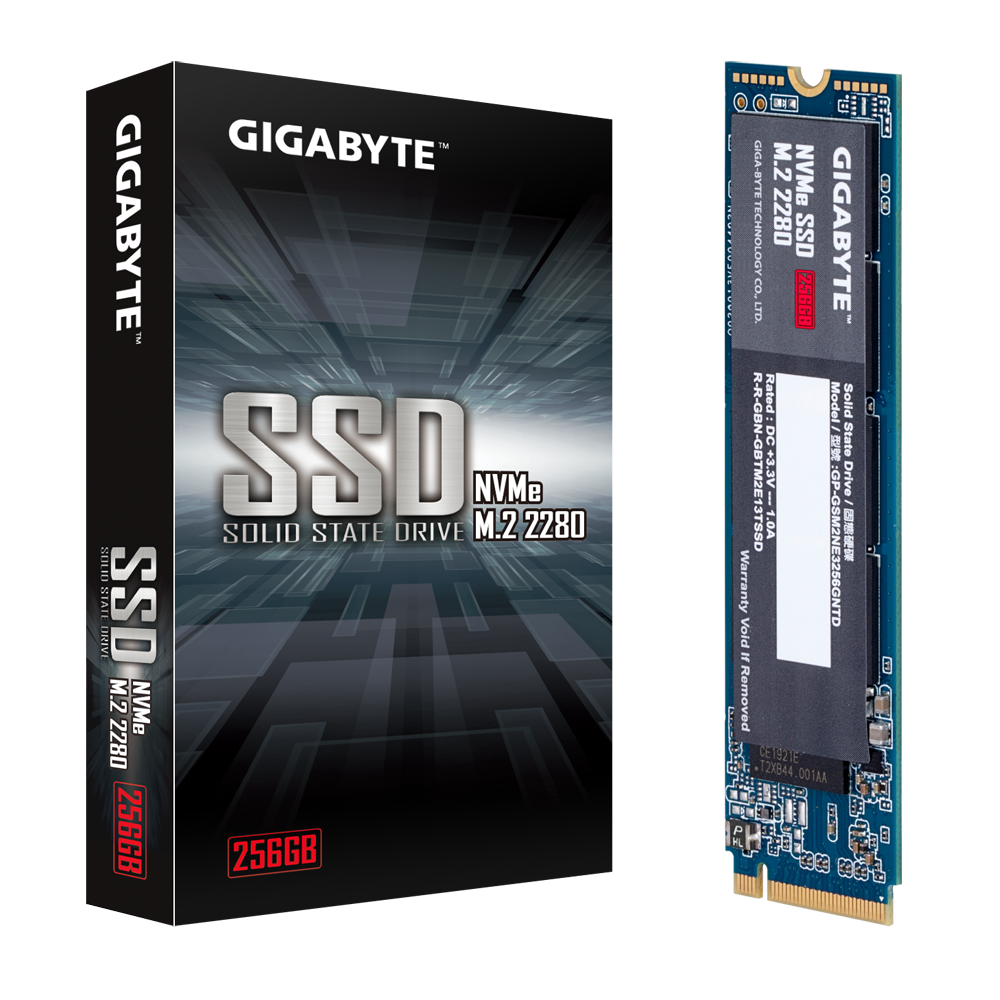

GIGABYTE NVMe 256GB SSD GP-GSM2NE3256GNTD
- Form Factor: M.2 2280
- Interface: PCI-Express 3.0 x4, NVMe 1.3
- Total Capacity: 256GB*
- Sequential Read Speed: up to 1700 MB/s
- Sequential Write Speed: up to 1100 MB/s
- HMB (Host Memory Buffer) supported
- TRIM & S.M.A.R.T supported
৳ 2,850
GIGABYTE NVMe 256GB SSD GP-GSM2NE3256GNTD
Performance Stability GIGABYTE NVMe SSD
Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on a PC system, instead of requiring the SSD to bring its own DRAM.
Breaking the barriers of SATA limitations (256GB)
Outstanding performance
- GIGABYTE NVMe SSD provides performance for your daily computing tasks and boasts of the best controller & NAND flash that provides.
- Sequential read speeds up to 1700 MB/s.
- Sequential write speeds up to 1100 MB/s.
- GIGABYTE M.2 PCIe SSD gives you a faster data transferring experience compared to a 2.5″ SATA solid state drive.
SSD Tool Box
The newly updated SSD Tool Box is an application that helps users monitor SSD Status, provides general information such as model name, FW version, health condition, drive optimization, and also detects sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the Support.
Interface |
PCI-Express 3.0 x4, NVMe 1.3 |
Form Factor |
M.2 2280 |
Total Capacity |
256GB |
NAND |
NAND Flash |
External DDR Cache |
N/A |
Sequential Read speed |
Up to 1700 MB/s |
Sequential Write speed |
Up to 1100 MB/s |
Random Read IOPS |
Up to 180k |
Random Write IOPS |
Up to 250k |
Dimension |
80 x 22 x 2.3 mm |
Mean time between failure (MTBF) |
1.5M hours |
Max. Operating Power |
Read: 2.6W |
Write:2.4W | |
Power Consumption (Idle, PS3) |
30mW |
Power Consumption(PS4, L1.2) |
5mW |
Temperature (Operating) |
0°C to 70°C |
Temperature (Storage) |
-40°C to 85°C |
Warranty |
Limited warranty based on 03 years or 300TBW, whichever comes first. |
TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. | |
When the usage of an NVME SSD as indicated by the “Percentage Used” in the SMART page of the “GIGABYTE SSD toolbox” reaches 100 means out of warranty. | |
Note |
• Test system configuration: configuration may vary by model, we will choose the latest platform for verification. |
• Performance may vary based on the SSD’s firmware version and system hardware & configuration. Sequential performance measurements based on Crystal Disk Mark and IOmeter 1.1.0. | |
• Speeds based on internal testing. Actual performance may vary. | |
• 1GB = 1 billion bytes. Actual useable capacity may vary. |
