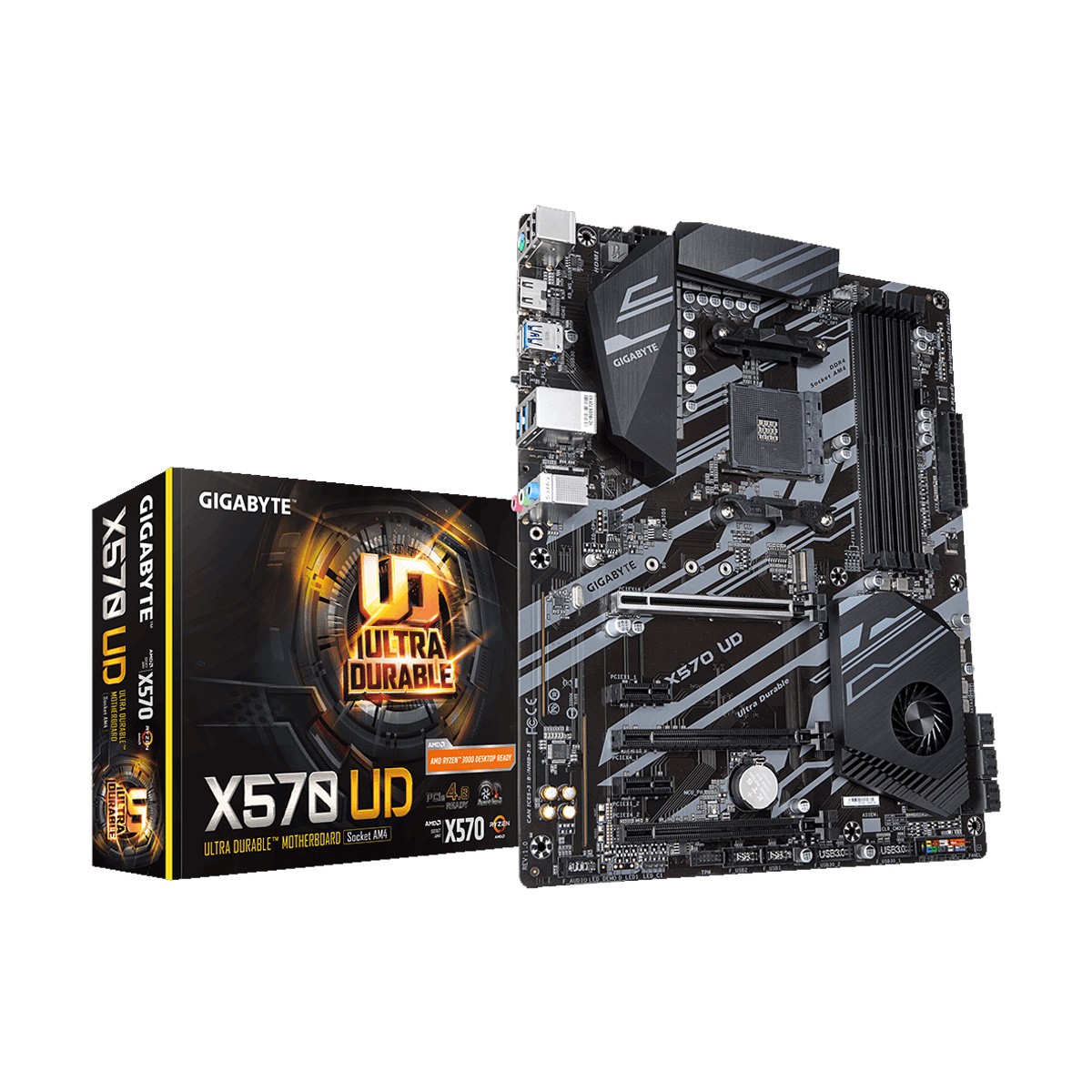

Gigabyte X570 UD DDR4 AM4 Socket AMD Mainboard

Gigabyte X570 UD DDR4 AM4 Socket AMD Mainboard

Gigabyte

Model – Gigabyte X570 UD
CPU Sockets – AM4
Chipset – AMD X570
Memory Channel – Dual Channel
Graphic – Integrated Graphics
Multi-GPU Support – AMD Quad-GPU CrossFire and 2-Way AMD CrossFire
Audio Chipset – Realtek ALC887

Add to Wishlist
Compare
Availability:

Available on backorder

৳ 16,500

Available on backorder

Add to Wishlist
Compare
Brand Gigabyte
Model Gigabyte X570 UD
Form factor ATX
Sockets AM4
Chipset AMD X570
Supported CPU AMD Ryzen 2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors
RAM type DDR4
RAM bus 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz
RAM max 128GB
RAM slot 4
PCI Express x16 slot 1 x PCI Express x16 slot, running at x16
SATA port 6 x SATA
M.2 Slot 1 x M.2 Socket 3 (type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support/ type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Audio chipset Realtek ALC887
Audio channel 2/4/5.1-channel
LAN chipset Realtek GbE LAN
LAN speed 10/100/1000Mbps
USB Port 6 x USB3.2 Gen 1, 4 x USB2.0
HDMI port 1
Others 1 x M.2 Socket 3, 1 x CPU fan header, 1 x water cooling CPU fan header, 2 x system fan headers, 1 x RGB LED strip header, 1 x front panel header, 1 x front panel audio header, 1 x Trusted Platform Module (TPM) header, 1 x Clear CMOS jumper, 1 x Q-Flash Pl
Warranty 3 year
M.2 Slot Yes
