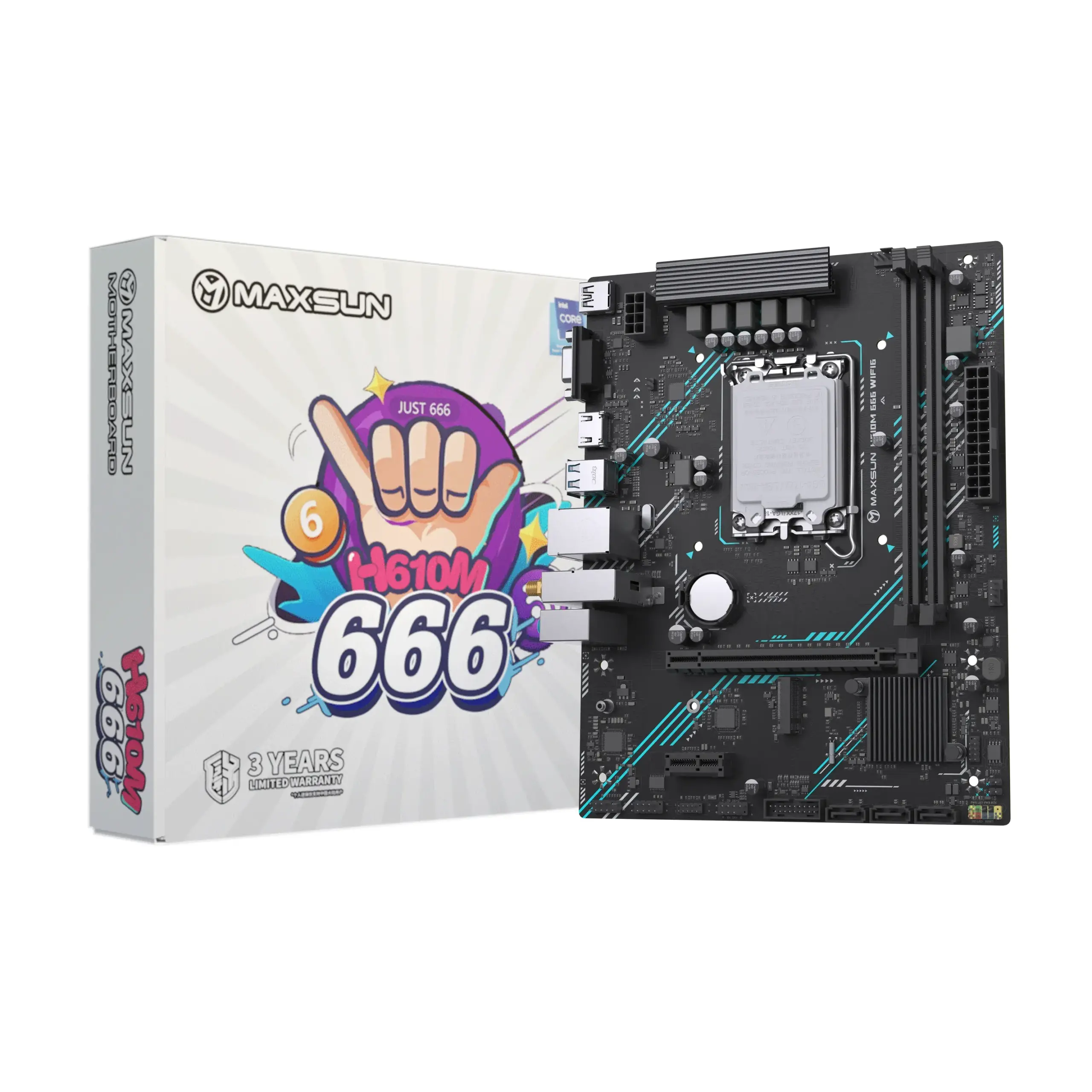

Maxsun MS-H610M 666 WIFI6 DDR4 LGA1700 Motherboard
- Brand: Maxsun
- Model: MS-H610M 666 WIFI6
- CPU Support: 12th and 13th generation LGA1700 interface CPU
- Wireless Network Card: Intel WIFI6
- Screen Printing: Bi-Color in Gaming Blue
- Power Supply: 4+1+1 phase DR.MOS high specification
- Warranty: 03 years warranty
৳ 9,700
Maxsun MS-H610M 666 WIFI6 DDR4 LGA1700 Motherboard
Introducing the Maxsun MS-H610M 666 WIFI6 DDR4 LGA1700 Motherboard, a high-performance and innovative motherboard designed by Maxsun. Here’s a breakdown of its key features:
Chipset: Intel H610
CPU Support:
- Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold, and Celeron® Processors
- LGA 1700 socket
Memory:
- 2x DDR4 slots, Maximum Memory Capacity 64GB
- Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz
- Supports Intel® XMP 2.0 OC
- Supports Dual-Controller Dual-Channel mode
Onboard Graphics:
- 1x Display Port 1.2
- 1x HDMIâ„¢ port (supports up to 4K@30Hz)
- Graphics specifications may vary between CPU types. Refer to www.intel.com for updates.
Expansion Slots:
- 1x PCIe 4.0 x16 slot
- 1x PCIe 3.0 x1 slot
Storage:
- M.2 slot (Key M), type 2242/2280 (supports PCIe 3.0 x4 mode)
- 4x SATA 6Gb/s ports
- Does not support RAID
USB:
- Front USB (Total 4 ports): 2x USB 3.2 Gen1 Type A, 2x USB 2.0
- Rear USB (Total 6 ports): 2x USB 3.2 Gen1 Type A, 4x USB 2.0
LAN: Realtek® RTL8111H 1G LAN
Audio: Realtek® ALC897 Codec, 5.1-Channel High Definition Audio
Internal I/O:
- Various connectors including power connectors, fan connectors, M.2 slots, SATA ports, audio, COM port, TPM pin header, etc.
LED Feature: 4x Distributed Debug LED
Operating System Support: Windows® 11 64-bit, Windows® 10 64-bit
Form Factor: M-ATX, 220mm x 185mm
The Maxsun MS-H610M 666 WIFI6 DDR4 LGA1700 Motherboard offers exceptional compatibility, efficiency, and connectivity, making it an ideal choice for high-performance computing needs. Additionally, it comes with a generous 12-month warranty, ensuring peace of mind and reliability.
CHIPSET | INTEL H610 |
CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
 | LGA 1700 |
MEMORY | 2x DDR4, Maximum Memory Capacity 64GB |
 | Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz |
 | Supports Intel® XMP 2.0 OC |
 | Supports Dual-Controller Dual-Channel mode |
ONBOARD GRAPHICS | 1x Display Port 1.2 |
 | 1x HDMI™ port |
 | *HDMI™ port supports up to 4K@30Hz |
 | *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
EXPANSION SLOT | 1x PCIe 4.0 x16 slot |
 | 1x PCIe 3.0 x1 slot |
STORAGE | M.2 slot (Key M), type 2242/2280 (supports PCIe 3.0 x4 mode) |
 | 4x SATA 6Gb/s ports |
RAID | Not Supports RAID |
USB | *Front USB (Total 4 ports) |
 | 2x USB 3.2 Gen1 Type A |
 | 2x USB 2.0 |
 | *Rear USB (Total 6 ports) |
 | 2x USB 3.2 Gen1 Type A |
 | 4x USB 2.0 |
LAN | Realtek® RTL8111H 1G LAN |
AUDIO | Realtek® ALC897 Codec |
 | 5.1-Channel High Definition Audio |
INTERNAL I/O | 1x 24-pin Power Connector(ATX_PWR) |
 | 1x 8-pin Power Connector(CPU_PWR) |
 | 1x CPU Fan |
 | 3x System Fan |
 | 1x M.2 slots (Key-M) |
 | 4x SATA 6Gb/s ports |
 | 1x 2-Pin CLR_CMOS |
 | 1x 4-Pin BUZZER |
 | 1x Front Audio |
 | 1x COM_A Port |
 | 1x 9-Pin DEBUG_CON |
 | 1x TPM pin header(Support TPM 2.0) |
LED FEATURE | 4x Distributed Debug LED |
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
FORM FACTOR | M-ATX |
 | 220mm x 185mm |
