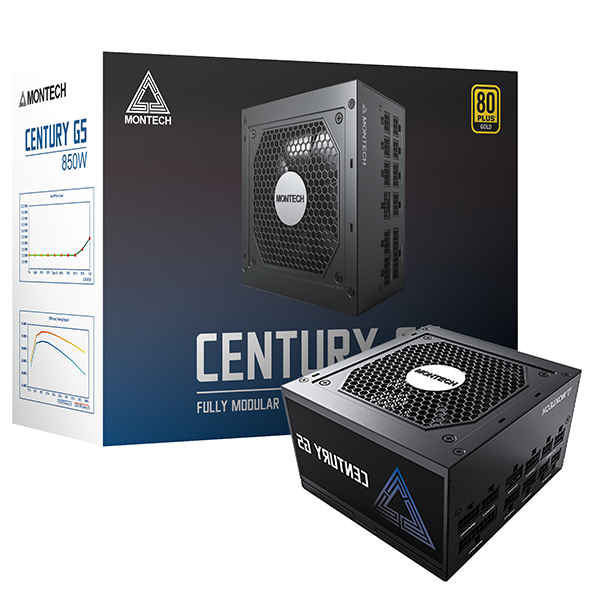

Montech Century G5 850W 80 Plus Gold
- 80 PLUS GOLD Certified
- Intel ATX 3.0 & PCIe 5.0 Ready
- Full Bridge LLC Resonant Converter & DC-DC Technology
- 100% High-Quality Japanese 105°C Capacitors
- FDB Premium Silent Fan
- Fully Modular Design
- Complete 6 Protections
- 5 Years Warranty
PCIe 5.0 Ready
The all-new CENTURY G5 series supports PCIe 5.0 with the original 12VHPWR port and cable, powering up your new generation graphics card with stability.
Intel ATX 3.0 Ready
CENTURY G5 series complies with the Intel ATX 3.0 specification and can withstand 2x the instant peak power consumption of the whole system. The 12VHPWR connector can withstand 3x the instant peak power consumption of GPU, providing a continuous and safe power supply for your computer system.
80 PLUS GOLD Certified High Efficiency
CENTURY G5’s 80 PLUS GOLD certified high efficiency saves energy consumption while ensuring sufficient power output. For gaming or other usage scenarios, CENTURY G5 is perfectly competent.
Powerful and Reliable Circuit Structure
The CENTURY G5 series adopts the full bridge LLC resonant converter, achieving high efficiency and reliability. Premium components such as 100% Japanese industrial grade 105°C capacitors significantly extend the overall lifespan of the power supply.
Ultra Quiet Design
The high-end fan of CENTURY G5 with fluid dynamic bearing design performs ideal cooling at a low noise level. In addition to the long service life of the fan, CENTURY G5 provides users with the experience of high efficiency and silent operation.
Fully Modular Design
The simple and convenient fully modular design allows users to connect only the needed cables, achieving clean cable management with more space for airflow.
Cables included in CENTURY G5 have sufficient connectors and come in proper lengths, providing an easy PC-building process.
Complete 6 Protections & 5 Years Warranty
A total of 6 protections, including OCP, OVP, UVP, OPP, SCP, and OTP, make the CENTURY G5 series a safe and reliable power supply.
MONTECH provides a 5-year warranty for the CENTURY G5 series to guarantee the best user experience.
Product Name |
CENTURY G5 850W |
|
ATX Version |
Intel ATX12V |
|
PFC |
Active PFC (>0.9 typical) |
|
Input Voltage |
100-240Vac |
|
Input Current |
12A |
|
Input Frequency |
47-63Hz |
|
Dimensions (L*B*H) |
150*140*86mm |
|
Fan Size |
120mm(FDB Fan) |
|
Efficiency |
90% Typically |
|
Operating Temperature |
0-45°C |
|
Protections |
OVP / OPP / OTP / SCP / OCP/ UVP |
|
Regulatory |
cTUVus / TUV / CB / CE / FCC / RoHS / BSMI |
|
Connectors |
M/B 20+4Pin |
1 |
CPU 4+4Pin |
2 |
|
PCIE 6+2 |
(2 Connectors)*2 |
|
SATA |
(4 Connectors)*2 + (2 Connectors)*1 |
|
Molex 4Pin |
(3 Connectors)*1 |
|
12+4PCIe 5.0 |
1 |
AC INPUT |
100-240Vac 47-63Hz 12A |
||||
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
Max. Output Current |
20A |
20A |
70.5A |
0.3A |
2.5A |
Max. Output Power |
110W |
846W |
3.6W |
12.5W |
|
Total POWER |
850W |
