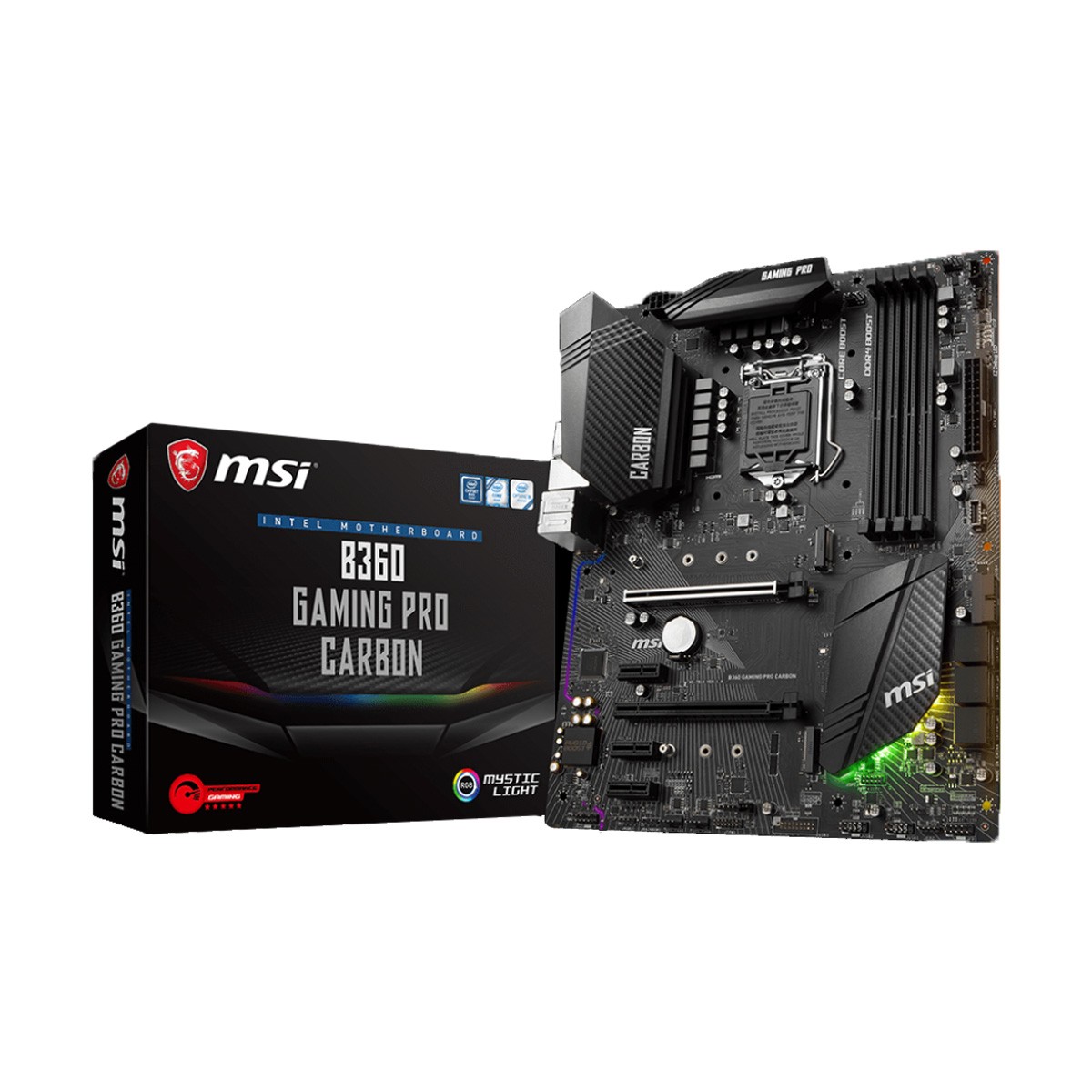

MSI B360 Gaming Pro Carbon DDR4 8th/9th Gen LGA 1151 Socket Mainboard with2x Turbo M.2 and Mystic Light
Model – MSI B360 Gaming Pro Carbon
CPU Sockets – LGA1151
Chipset – Intel B360
Memory Channel – Dual
Multi-GPU Support – 2-Way AMD CrossFire
Audio Chipset – Realtek ALC1220 Codec
Availability:
Available on backorder
৳ 13,600
Available on backorder
Brand | MSI |
Model | MSI B360 Gaming Pro Carbon |
Form factor | ATX |
Sockets | LGA1151 |
Chipset | Intel B360 |
Supported CPU | 9th/8th Generation Intel Core, Pentium, Gold and Celeron Processors |
RAM type | DDR4 |
RAM bus | 2666/ 2400/ 2133MHz |
RAM max | 64GB |
RAM slot | 4 |
PCI Express x16 slot | 2 x PCIe 3.0 x16, 3 x PCIe 3.0 x1 |
SATA port | 6 x SATA |
M.2 Slot | 1 x M.2 (up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices), 1 x M.2 (up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices) |
Audio chipset | Realtek ALC1220 Codec |
Audio channel | 7.1-Channel |
DirectX supoort | 12 |
LAN chipset | Intel I219-V |
LAN speed | 10/100/1000Mbps |
USB Port | 3 x USB3.1 Gen2, 2 x USB3.1 Gen1, 6 x USB2.0 |
HDMI port | 1 |
Others | 2 x M.2, 1 x DisplayPort, 1 x Clear CMOS jumper, 1 x TPM module connector, Mystic Light, 9 mounting holes, Special Features Intel Turbo USB 3.1 Gen2, Intel GAMING LAN, Gaming Device Port, High-res DisplayPort, Golden audio jacks with S/PDIF, Gaming heatsi |
Warranty | 3 year |
M.2 Slot | Yes |
