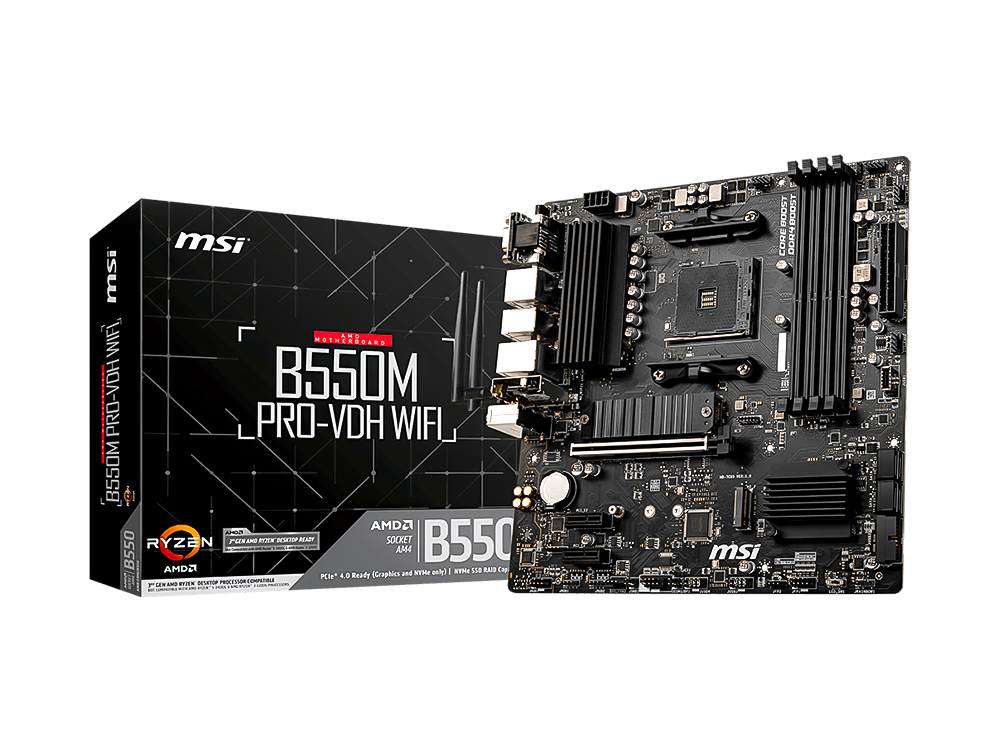

MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard

  • Processor Support: AMD Ryzen™ 5000 & 3000 Series (excluding Ryzen™ 5 3400G & Ryzen™ 3 3200G), and Ryzen™ 4000 G-Series.
  • Memory: Supports DDR4 up to 4400(OC) MHz.
  • Connectivity: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr.
  • Thermal Management: 7W/mK pad, additional choke thermal pad, M.2 Shield Frozr.
  • Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost.
  • Audio: Audio Boost for studio-grade sound.
  • Software: Dragon Center for integrating MSI tools.
Availability:

Out of stock

৳ 15,500

Out of stock

CPU:

  • Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

CHIPSET:

  • AMD B550 Chipset

MEMORY:

  • 4x DDR4 memory slots, support up to 128GB
  • Supports DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz by JEDEC
  • Supports DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400+ MHz by A-XMP OC MODE
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory
  • Supports un-buffered memory

EXPANSION SLOT:

  • 1x PCIe 4.0/3.0 x16 slot (PCI_E1)
  • 2x PCIe 3.0 x1 slots
  • The supported specification depends on the installed processor.

ONBOARD GRAPHICS:

  • 1x VGA port, supports resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz
  • 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz
  • 1x HDMI™ 2.1 port, supports a maximum resolution of 4096×2160 @60Hz
  • Support HDCP 1.4 & 2.3
  • The maximum shared memory of 16 GB
  • Available for the processor with integrated graphics.
  • Graphics specifications may vary depending on the CPU installed.

STORAGE:

  • AMD B550 Chipset
    • 4x SATA 6Gb/s ports
    • 2x M.2 slots (Key M)
      • M2_1 slot (from AMD Processor): Supports PCIe 4.0/3.0 x4, SATA 6Gb/s, Supports 2242/2260/2280 storage devices
      • M2_2 slot (from AMD B550 chipset): Supports PCIe 3.0×4, Supports 2242/2260/2280 storage devices
  • The supported specification depends on the installed processor.
  • RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices. Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB:

  • AMD B550 Chipset
    • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
    • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
  • AMD Processor
    • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO:

  • Realtek® ALC892/ALC897 Codec
  • 7.1-Channel High Definition Audio

LAN:

  • 1x Realtek® 8111HN Gigabit LAN controller

WIRELESS LAN & BLUETOOTH®:

  • Wi-Fi AC: Supports Wi-Fi 802.11 a/b/g/n/ac, dual-band (2.4GHz, 5GHz) up to 433 Mbps speed.
  • Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2

INTERNAL CONNECTORS:

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 3x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 1x TPM module connector
  • 1x Clear CMOS jumper

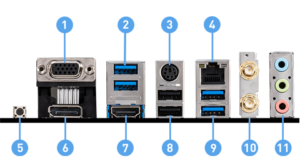

BACK PANEL PORTS:

MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard

  1.
    1. VGA
    2. Keyboard / Mouse
    3. PS/2 port
    4. LAN
    5. Flash BIOS Button
    6. DisplayPort
    7. HDMI™
    8. USB 2.0
    9. USB 3.2 Gen 1 5Gbps Type-A
    10. Wi-Fi Antenna connectors
    11. 3x Audio jacks

DIMENSIONS:

  • Micro-ATX Form Factor: 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

MOUNTING:

  • 8 mounting holes
  • USB 3.2 Gen 1 5Gbps Type-A
Specification Details
Socket AMD Socket AM4
Chipset AMD® B550 Chipset
Memory Channel Dual
DIMM Slots 4
Max Memory (GB) 128
PCI-E x16 1
PCI-E Gen Gen4 / Gen3
PCI-E x1 2
SATAIII 4
M.2 Slot 2
RAID 0/1/10
TPM (header) 1
WiFi & Bluetooth WiFi-AC, Bluetooth 4.2
USB 3.2 ports (Front) 1(Gen 1, Type C), 2(Gen 1, Type A)
USB 3.2 ports (Rear) 4(Gen 1, Type A)
USB 2.0 ports (Front) 4
USB 2.0 ports (Rear) 2
Serial ports (Front) 1
Audio ports (Rear) Realtek® ALC892/ALC897 Codec
DisplayPort 1
VGA 1
HDMI 1
DirectX 12
CPU Support Support for Windows® 10 64-bit
Form Factor MATX
