MSI PRESTIGE Mainboard

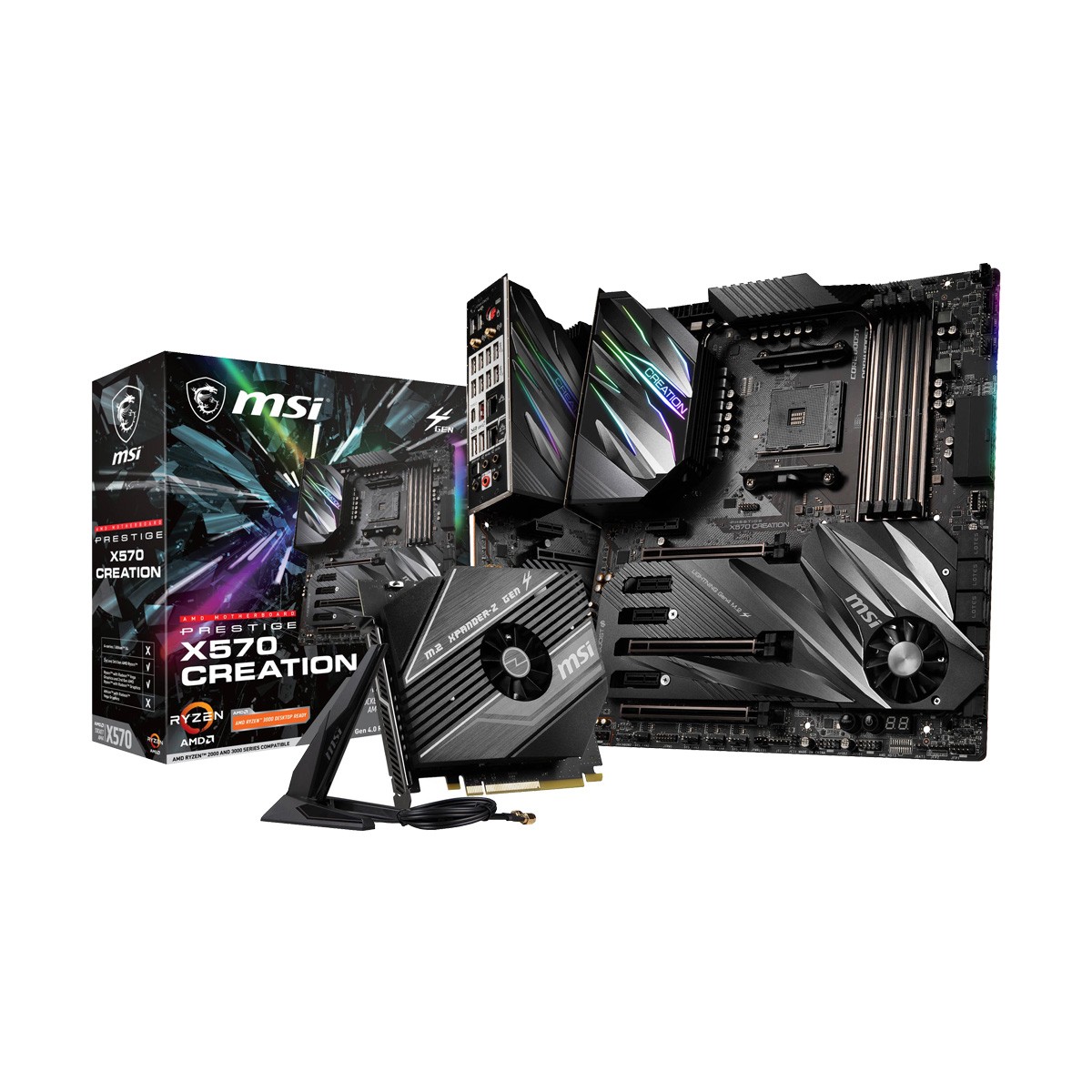

MSI PRESTIGE X570 CREATION 2nd/3rd Gen AMD AM4 Socket Mainboard

MSI

Model – MSI PRESTIGE X570 CREATION
CPU Sockets – AM4
Chipset – AMD X570 Chipset
Memory Channel – Dual Channel
Multi-GPU Support – 2-Way NVIDIA SLI, 3-Way AMD CrossFire
Audio Chipset – Realtek ALC1220

Add to Wishlist
Compare
Availability:

Available on backorder

৳ 49,500

Available on backorder

Add to Wishlist
Compare
Brand MSI
Model MSI PRESTIGE X570 CREATION
Form factor E-ATX
Sockets AM4
Chipset AMD X570 Chipset
Supported CPU AMD Ryzen 2nd and 3rd Generation / Ryzen with Radeon Vega Graphics Processors, AMD Ryzen 2nd Generation Radeon Graphics Desktop Processors
RAM type DDR4
RAM bus 1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600+MHz
RAM max 128GB
RAM slot 4
PCI Express x16 slot 2x PCIe 4.0/3.0 x16 slot, 1x PCIe 4.0/3.0 x16 slot (PCI_E7, supports x4 mode), 4x PCIe 2.0 x1 slots
SATA port 6 x SATA
M.2 Slot 2 x M.2 slots (PCIe 4.0 x4 or PCIe 3.0 x4 and 2242/2260/2280 storage devices), (PCIe 4.0 x4 or 3.0 x4 and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices)
Audio chipset Realtek ALC1220
Audio channel 7.1-Channel
DirectX supoort 12
LAN chipset Intel I211AT Gigabit LAN, Aquantia AQC107 10-Gigabit LAN
USB Port 2 x USB3.2 Gen 2 Type C, 1 x USB3.2 Gen 2 Type A, 14 x USB3.2 Gen 1 Type A, 6 x USB2.0
Others 2 x M.2 slots, 1x 4-pin CPU fan connector, 1x 4-pin Water Pump connector, 7x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x TPM module connector, 2x 2-pin Thermal Sensors connect
Warranty 3 year
M.2 Slot Yes
