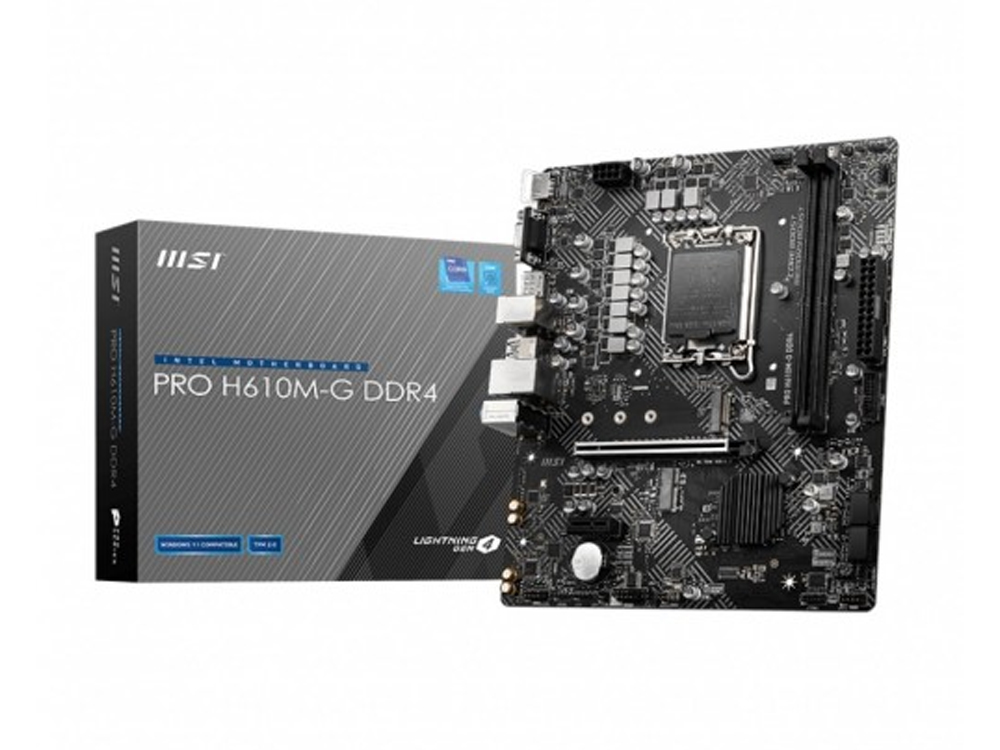

MSI PRO H610M-G DDR4 Micro-ATX Motherboard

  • Model: PRO H610M-G DDR4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Memory Support: Supports DDR4 Memory, up to 3200(MAX) MHz
  • Lightning Fast Experience: PCIe 4.0
  • Enhanced Performance: Core Boost, Memory Boost, Audio Boost
Compare

৳ 10,400

Basic Information
Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
Processor socket LGA1700
Chipset Intel H610 Chipset
Form Factor mATX Form Factor
9.29 x 7.95 in. (23.6 cm x 20.2 cm)
Audio Realtek ALC892/ ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots
PCI 1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot
Supports PCIe 3.0 x1
1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)
Memory
Type DDR4
Slots 2x DDR4 memory slots
Supported Memory Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory Support up to 64GB
Graphics
Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector & Ports
HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort
VGA (s) 1x VGA port
USB (s) Intel H610 Chipset:
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
LAN Port (s) 1x Intel I219V 1Gbps LAN controller
Supported Storage 4x SATA 6Gb/s ports
1x M.2 slot (Key M, from chipset)
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Smart Response Technology for Intel Core processors
Internal I/O Ports

POWER CONNECTORS:
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector

FAN CONNECTORS:
1x 4-pin CPU fan connector
1x 4-pin system fan connector

SYSTEM CONNECTORS:
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector

JUMPERS:
1x Clear CMOS jumper

LED FEATURES:
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
4x EZ Debug LED

TPM (Trusted Platform Module ) 1x TPM module connector
Warranty Information
Manufacturing Warranty 3 years
