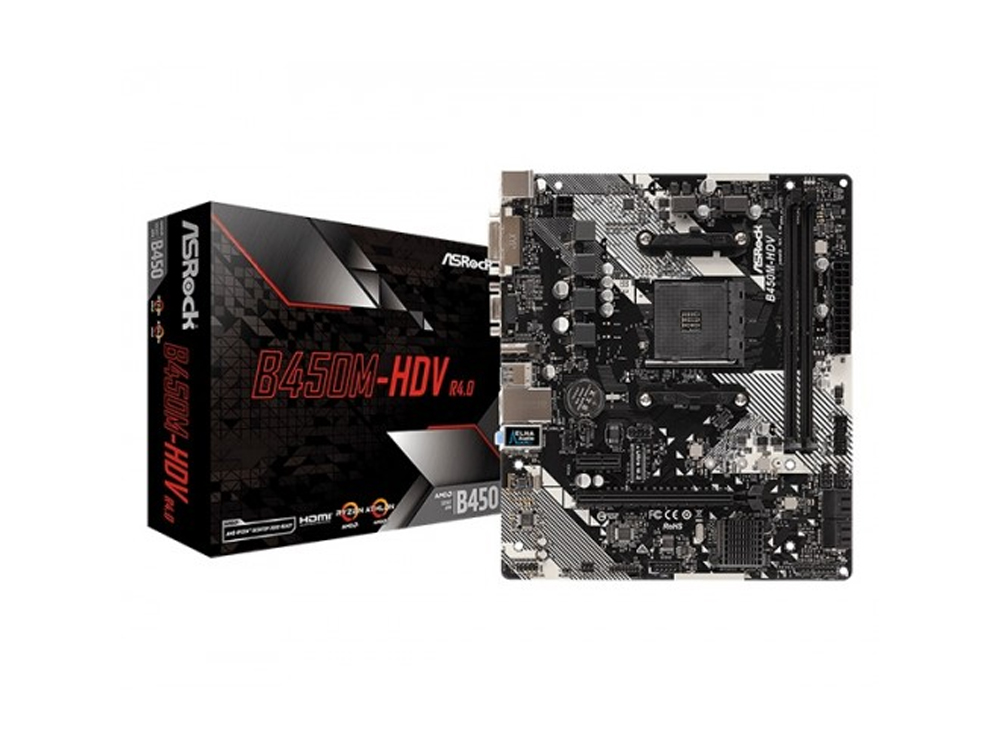

ASRock B450M-HDV R4.0 AMD Motherboard
- Model: ASRock B450M-HDV R4.0
- Memory Support: Up to 32 GB
- Chipset: AMD Promontory B450
- Operating System: Windows 10, 64-bit
- Expansion Slots: 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
- Warranty Information: 03 Years warranty
৳ 8,800
ASRock B450M-HDV R4.0 AMD Motherboard
The ASRock B450M-HDV R4.0 is a micro ATX motherboard designed for AMD AM4 socket CPUs, supporting processors up to 105W. It features the AMD Promontory B450 chipset, offering robust performance and versatility for various computing needs. Key features include dual DDR4 memory slots supporting up to 32GB, multiple expansion slots (including PCI Express 3.0), and a range of connectivity options such as HDMI, D-Sub, and DVI-D ports. The motherboard supports high-speed storage solutions with an Ultra M.2 socket and multiple SATA3 connectors. It also offers comprehensive audio support with Realtek ALC887 codec and includes essential internal I/O ports for enhanced functionality. The ASRock B450M-HDV R4.0 is equipped with special features like high-density glass fabric PCB design for durability and ASRock Live Update & APP Shop for easy system optimization. Ideal for gaming or entertainment, this motherboard ensures reliable performance and versatility.
Basic Information | ||
Supported CPU | – AMD AM4 Socket – Digi Power design – Supports CPU up to 105W |
|
Chipset | – AMD Promontory B450 | |
BIOS | – 128Mb AMI UEFI Legal BIOS with GUI support – SMBIOS 2.3 support |
|
Form Factor | – Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm | |
Expansion Slots | ||
PCI | AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD Ryzen series CPUs (Raven Ridge) – 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Athlon series CPUs – 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* – 1 x PCI Express 2.0 x1 Slot |
|
M.2 Socket | – 1 x Screw for M.2 Socket – 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)* |
|
Memory | ||
Type | – Dual Channel DDR4 Memory Technology | |
Slots | – 2 x DDR4 DIMM Slots – 15μ Gold Contact in DIMM Slots |
|
Supported Memory | For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. | |
Graphics | ||
Max Shared Memory | – Max Shared memory supports up to 16GB – The Max shared memory 16GB requires 32GB system memory installed. |
|
Connector & Ports | ||
HDMI | – 1 x HDMI Port | |
D-Sub (s) | – Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz – 1 x D-Sub Port |
|
DVI-D (s) | – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – 1 x DVI-D Port |
|
USB (s) | – 6 USB 3.1 Gen1 (2 Front, 4 Rear) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection) – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
|
LAN Port (s) | – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
Supported Storage |
– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug – Supports NVMe SSD as boot disks |
|
Audio | – 7.1 CH HD Audio (Realtek ALC887 Audio Codec) – Supports Surge Protection – ELNA Audio Caps |
|
Internal I/O Ports | – 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 2 x USB 2.0 Ports (Supports ESD Protection) – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone – 1 x COM Port Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)** – 1 x 24 pin ATX Power Connector – 1 x 4 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
|
TPM (Trusted Platform Module ) | 1 x TPM Header | |
Warranty Information | ||
Manufacturing Warranty | 03 Years warranty |
