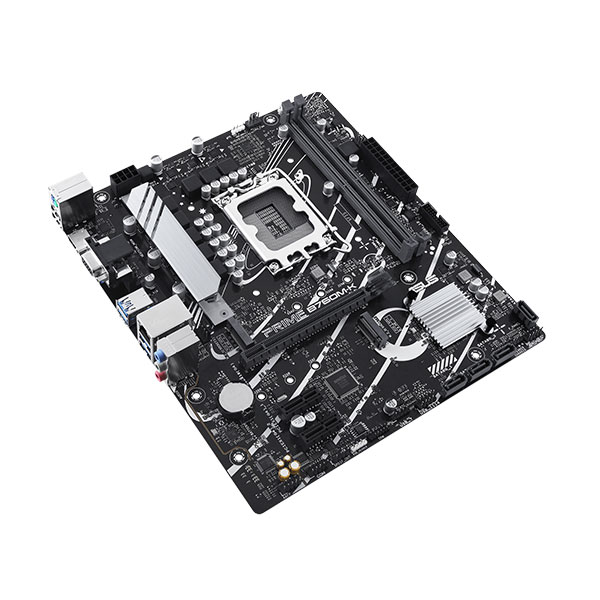

ASUS PRIME B760M-K Intel 13th Gen mATX Motherboard
- Chipset: Intel B760 Chipset for 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron Processors
- Socket: LGA1700
- M.2 Slots: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
- USB Ports: 5x Front ports, 6x Rear ports
- Memory: 2 x DIMM slots, Max. 96GB, DDR5
৳ 19,600
ASUS PRIME B760M-K Intel 13th Gen mATX Motherboard
The ASUS Pro B760M-C is a versatile microATX motherboard designed to support the 13th and 12th Gen Intel Core processors, along with Pentium Gold and Celeron processors. With an Intel B760 Chipset, this motherboard provides a reliable foundation for your system.
In terms of audio, it features Realtek 7.1 Surround Sound High Definition Audio CODEC, supporting jack-detection, multi-streaming, and front panel jack-retasking. To enjoy 7.1 Surround Sound, a chassis with an HD audio module in the front panel is required.
For expandability, it includes 1 PCIe 4.0 x16 slot for Intel 13th and 12th Gen processors, as well as 2 PCIe 4.0 x1 slots. The DDR5 memory slots support a maximum of 96GB at speeds ranging from 4800MHz to 8000MHz (OC), incorporating Intel Extreme Memory Profile (XMP) and OptiMem II technologies.
Connectivity options abound with rear USB ports, including 4 USB 3.2 Gen 1 Type-A and 2 USB 2.0 Type-A ports, and front USB ports supporting additional connections. Networking is facilitated by a Realtek 2.5Gb Ethernet port.
Storage flexibility is ensured with 2 M.2 slots supporting PCIe 4.0 x4 mode and 4 SATA 6Gb/s ports, including support for Intel Rapid Storage Technology and SATA RAID 0/1/5/10.
The motherboard is equipped with various internal I/O ports, including fan headers, power connectors, storage connections, USB headers, and miscellaneous headers for addressable Gen 2, Aura RGB, Clear CMOS, COM Port, Front Panel Audio, S/PDIF Out, Speaker, and SPI TPM.
The back panel provides further connectivity with USB ports, VGA and HDMI ports, a Realtek 2.5Gb Ethernet port, audio jacks, and a PS/2 Keyboard/Mouse combo port.
Special features include ASUS 5X PROTECTION III, ASUS Q-Design elements like Q-DIMM and Q-Slot, ASUS EZ DIY features including ProCool, ASUS Thermal Solution with VRM heatsink design, and Aura Sync compatibility with RGB headers.
Bundled software includes ASUS exclusive applications such as Armoury Crate, Aura Sync, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancellation, AI Suite 3, DIGI+ VRM, PC Cleaner, ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR, and UEFI BIOS for system management.
Supported CPU | Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** |
Chipset | Intel B760 Chipset |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Form Factor | mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
PCI | Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots |
Type | DDR5 |
Slots | 2 x DIMM slots, Max |
Supported Memory | 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
Max Memory | 96GB |
HDMI | 1 x VGA port 1 x HDMI port |
VGA port | 1 x VGA port |
USB (s) | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
Audio | 3 x Audio jacks |
Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
Back Panel I/O Ports | 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
Graphics | 1 x VGA port 1 x HDMI port |
Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot ASUS EZ DIY – ProCool ASUS Thermal Solution – VRM heatsink design Aura Sync – Aura RGB header – Addressable Gen 2 headers |
Bundled Software | ASUS Exclusive Software Armoury Crate – Aura Sync – Fan Xpert 2+ – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – DIGI+ VRM – PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
Warranty | 3 Years Brand Warranty. |
