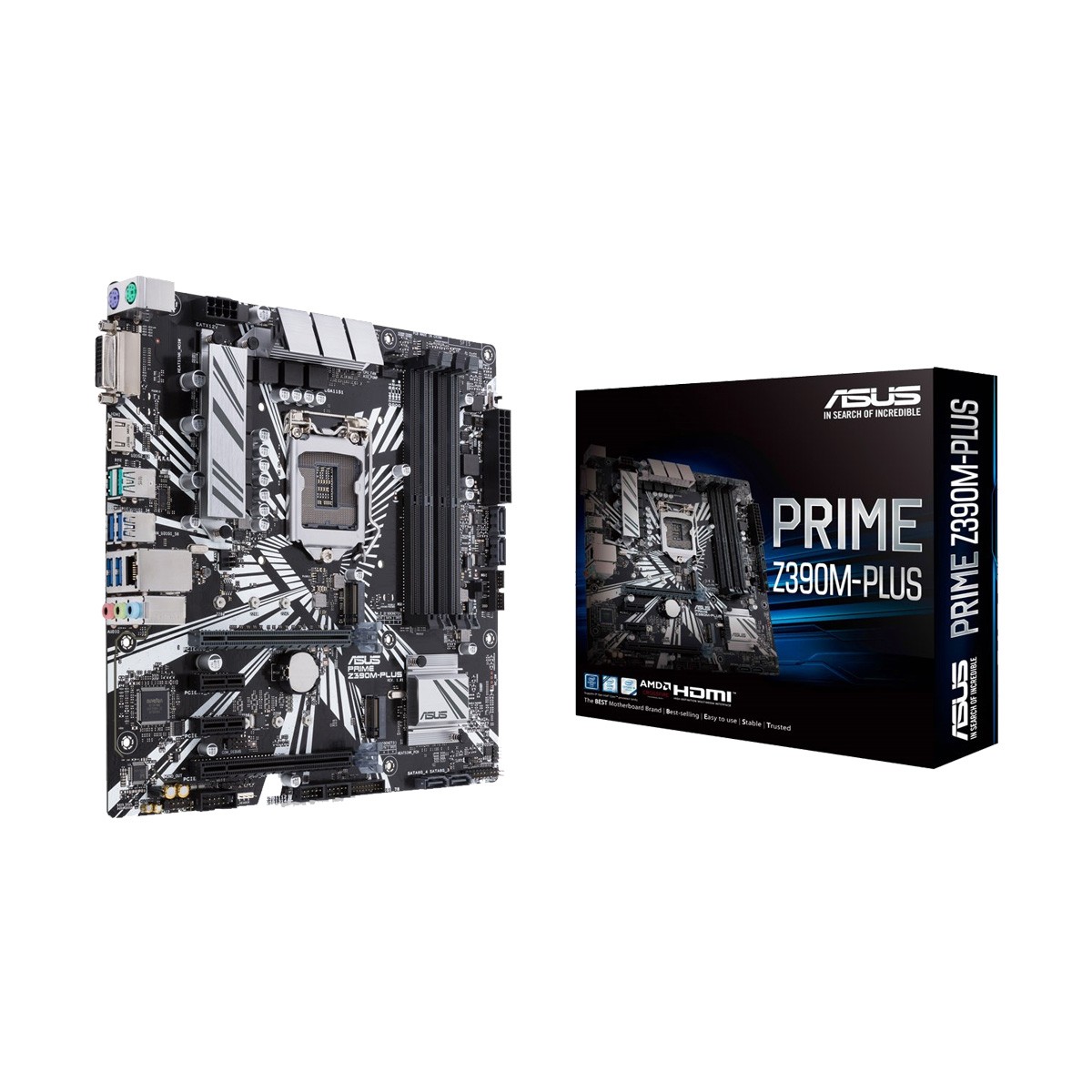

Asus PRIME Z390M-PLUS DDR4 Mainboard

Asus PRIME Z390M-PLUS DDR4 8th/9th Gen Intel LGA1151 Socket Mainboard

Asus

Model – Asus PRIME Z390M-PLUS
CPU Sockets – LGA1151
Chipset – Intel Z390
Memory Channel – Dual
Graphic – Integrated Graphics
Multi-GPU Support – AMD CrossFireX
Audio Chipset – Realtek ALC887

Add to Wishlist
Compare
Availability:

Available on backorder

৳ 14,200

Available on backorder

Add to Wishlist
Compare
Brand Asus
Model Asus PRIME Z390M-PLUS
Form factor mATX
Sockets LGA1151
Chipset Intel Z390
Supported CPU 9th/8th Generation Intel Core Pentium Gold / Celeron processors
RAM type DDR4
RAM bus 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHz
RAM max 64GB
RAM slot 4
PCI Express x16 slot 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4), 1 x PCIe 3.0/2.0 x16 (max at x4 mode), 2 x PCIe 3.0/2.0 x1
SATA port 4 x SATA
Audio chipset Realtek ALC887
Audio channel 8-Channel
LAN chipset Intel I219V
LAN speed 10/100/1000Mbps
USB Port 2 x USB3.1 Gen 2, 8 x USB3.1 Gen 1, 4 x USB2.0
DVI port 1
HDMI port 1
Others 2 x M.2 Socket 3, 1 x COM port, 1 x CPU Fan connector, 1 x MemOK! II switch, 1 x Clear CMOS jumper, 1 x RGB Header, 3 x Audio jack
Warranty 3 year
M.2 Slot Yes
