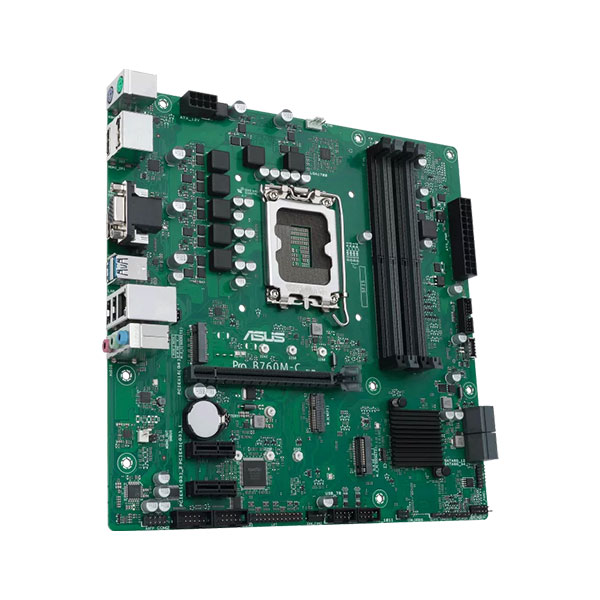

ASUS Pro B760M C CSM 13th Gen mATX Motherboard 3 600x600 1
, ,

ASUS Pro B760M-C-CSM 13th Gen mATX Motherboard

  • Chipset: Intel B760 Chipset for 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron Processors
  • Socket: LGA1700
  • M.2 Slots: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • USB Ports: Rear USB (Total 4 ports), Front USB (Total 7 ports)
  • Memory: 4 x DIMM, Max. 192GB, DDR5
Add to Wishlist
Compare

৳ 22,400

Add to Wishlist
Compare

ASUS Pro B760M-C-CSM 13th Gen mATX Motherboard

The ASUS Pro B760M-C-CSM is a microATX motherboard designed for stability and business-focused functionality, supporting both 13th and 12th Gen Intel Core processors, along with Pentium Gold and Celeron processors. Equipped with the Intel B760 Chipset, the motherboard provides a robust foundation for reliable performance.

Featuring four DIMM slots supporting DDR5 memory, with a maximum capacity of 192GB and speeds ranging from 4800MHz to 6200MHz (OC), the Pro B760M-C-CSM implements Intel Extreme Memory Profile (XMP) and OptiMem II technologies for enhanced memory capabilities.

Graphics options include two DisplayPorts, one VGA port, and one HDMI port, with support for 4K@60Hz as specified in DisplayPort 1.4 and HDMI 2.1. The expansion slots include one PCIe 4.0/3.0 x16 slot for Intel 13th and 12th Gen processors, and two PCIe 3.0 x1 slots.

Storage flexibility is provided through two M.2 slots supporting PCIe 4.0 x4 mode and four SATA 6Gb/s ports, with support for SATA RAID 0/1/5/10 through Intel Rapid Storage Technology. Networking capabilities include an Intel 1Gb Ethernet port with ASUS LANGuard for enhanced reliability.

The motherboard offers a range of USB ports, both at the rear (including USB 3.2 Gen 1 Type-A and USB 2.0 Type-A) and front (including USB 3.2 Gen 1 Type-C). The Realtek 7.1 Surround Sound High Definition Audio CODEC ensures quality audio with support for jack-detection and front panel jack-retasking.

For internal connectivity, the Pro B760M-C-CSM includes headers for CPU and chassis fans, power connectors, storage, USB ports, and various miscellaneous features. ASUS Q-Design elements such as Q-DIMM, Q-LED Core, and Q-Slot contribute to user-friendly design, while ASUS EZ DIY features like Box Headers enhance ease of use.

The motherboard also incorporates business-focused features, including ASUS Self Recovering BIOS, ASUS Event Log, and the ASUS Commercial BIOS kit. The 24/7 reliability, anti-moisture coating, and overcurrent protection further contribute to the durability of the motherboard.

With ASUS exclusive software such as ASUS Control Center Express (ACCE) and IT management software support, this motherboard is well-suited for business environments. The Pro B760M-C-CSM comes with a 3-year brand warranty and supports Windows 11 and Windows 10 64-bit operating systems.

Categories: , , Tags: , , , ,
Model Pro B760M-C-CSM
CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset Intel® B760 Chipset
Memory 4 x DIMM, Max. 192GB, DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Optimem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
4 x DIMM, Max. 128GB, DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Optimem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 2 x DisplayPort**
1 x VGA port
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1.
Expansion Slots Intel® 13th & 12th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
Intel® B760 Chipset
2 x PCIe 3.0 x1 slots
Note:To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet 1 x Intel® 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.
USB Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
2 x DisplayPorts
1 x HDMI® port
1 x VGA port
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x Mono-out header (with Amp IC)
1 x M.2 slot (Key E)
1 x SMBUS header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS EZ DIY
– Box Headers
Bespoke Motherboard Design & Business Focused Features
– ASUS Self Recovering BIOS
– ASUS Event Log
– ASUS Commercial BIOS kit*
– Anti-Moisture Coating
– 24/7 Reliability
– Overcurrent Protection
* Please contact with local FAE for commercial BIOS kit.
Software Features ASUS Exclusive Software
IT Management software supported
– ASUS Control Center Express (ACCE)
BIOS 128Mb Flash ROM
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Screw package for M.2 SSD
1 x Screw package for M.2 Key E
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Operating System Windows® 11, Windows® 10 64-bit
Form Factor mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Warranty 3 Years Brand Warranty.
