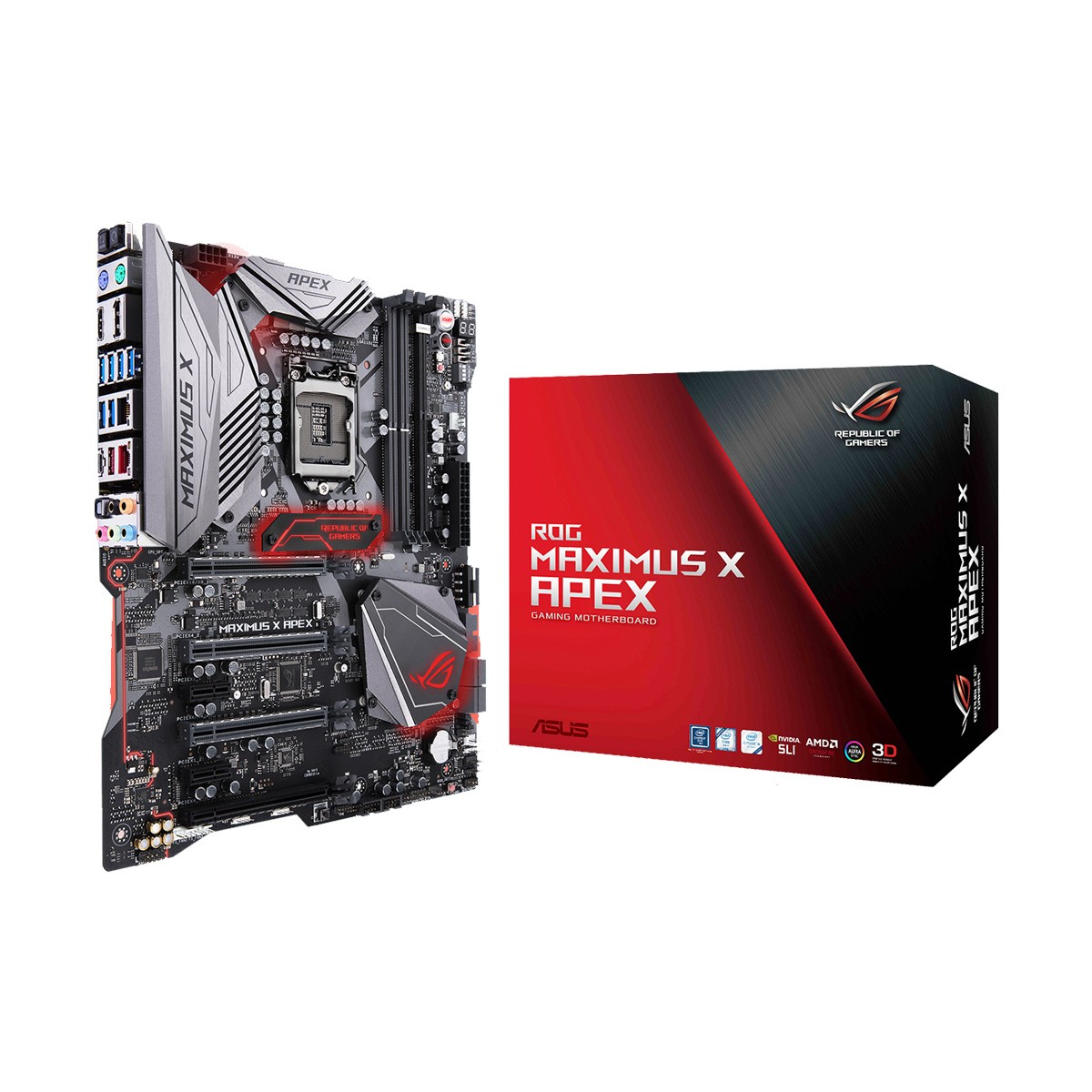

Asus ROG MAXIMUS X APEX Z370 DDR4 8th/9th Gen Intel LGA1151 Socket Mainboard
Model – Asus ROG MAXIMUS X APEX
CPU Sockets – LGA1151
Chipset – Intel Z370
Graphic – Integrated Graphics
Multi-GPU Support – NVIDIA 2-Way SLI,
AMD 4-Way/3-Way/2-Way CrossFireX
Audio Chipset – ROG SupremeFX
Availability:
Out of stock
৳ 31,500
Out of stock
Brand | Asus |
Model | Asus ROG MAXIMUS X APEX |
Form factor | Extended ATX |
Sockets | LGA1151 |
Chipset | Intel Z370 |
Supported CPU | 8th Generation Intel Core Processors |
RAM type | DDR4 |
RAM bus | 4500(O.C)/ 4333(O.C.)/ 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHz |
RAM max | 32GB |
RAM slot | 2 |
PCI Express x16 slot | 3 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4), 1 x PCIe 3.0 x16 (max at x4 mode), 2 x PCIe 3.0/2.0 x1 |
SATA port | 4 x SATA |
M.2 Slot | 1 x ROG DIMM.2 Module (type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)), 1 x ROG DIMM.2 Module (type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)) |
Audio chipset | ROG SupremeFX |
Audio channel | 8-Channel |
LAN chipset | Intel I219V |
LAN speed | 10/100/1000Mbps |
USB Port | 8 x USB3.1 Gen 1, 6 x USB2.0 |
HDMI port | 1 |
Others | 1 x DisplayPort, 1 x Q Code, 1 x AAFP connector, 4 x Aura RGB Strip Headers, 1 x CPU Fan connector(s), 1 x Slow Mode switch(es), 9 x ProbeIt Measurement Points, 2 x Thermal sensor connector(s), 1 x Safe Boot button, 1 x LN2 Mode jumper(s), 1 x DIMM.2 Slot |
Warranty | 3 year |
M.2 Slot | Yes |
