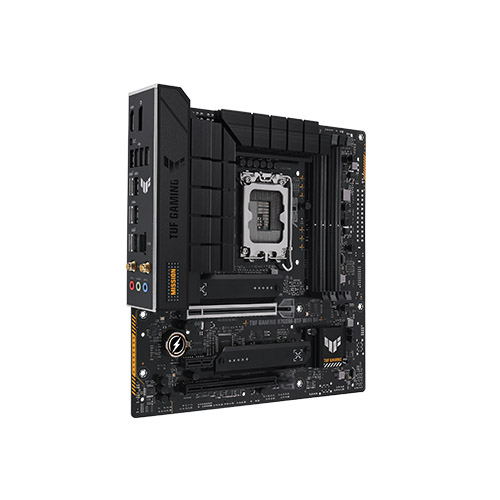

ASUS TUF GAMING B760M-BTF WIFI mATX Intel 13th Gen Gaming Motherboard

  • Chipset: Intel B760 Chipset for 14th, 13th & 12th Gen
  • Socket: LGA1700
  • M.2 Slots: 3 x M.2 slots
  • Memory: 4 x DIMM, Max. 192GB, DDR5
  • USB Ports: 6x Rear, 4x Front
Add to Wishlist
Compare

৳ 36,900

Add to Wishlist
Compare

ASUS TUF GAMING B760M-BTF WIFI mATX Intel 13th Gen Gaming Motherboard

The TUF GAMING B760M-BTF WIFI motherboard by ASUS is designed to accommodate 14th, 13th, and 12th Gen Intel Core processors, Pentium Gold, and Celeron processors, utilizing the Intel LGA1700 socket. With support for Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, the motherboard ensures enhanced performance. The Intel B760 chipset provides a stable foundation for efficient system operations.

The memory configuration includes 4 DIMM slots, allowing a maximum of 192GB DDR5 memory with speeds ranging from 4800 to 7200 MT/s, supporting Intel Extreme Memory Profile (XMP) and featuring OptiMem II technology. The motherboard features dual-channel memory architecture for optimized performance.

In terms of graphics, the motherboard provides a DisplayPort and an HDMI port, with specifications varying based on the CPU type. Expansion slots include PCIe 5.0 x16 for Intel 13th Gen processors and PCIe 4.0 x16 and PCIe 4.0 x1 for the Intel B760 chipset, ensuring ample room for additional components.

Storage capabilities comprise 3 M.2 slots and 4 SATA 6Gb/s ports, with support for Intel Rapid Storage Technology and SATA RAID configurations. The Realtek 2.5Gb Ethernet and Wi-Fi 6 ensure high-speed and reliable network connectivity, complemented by Bluetooth v5.2.

The rear I/O offers a comprehensive selection of USB ports, including USB 3.2 Gen 2×2, USB 3.2 Gen 2, USB 3.2 Gen 1, and USB 2.0. The internal connectors cater to fan and cooling needs, power requirements, storage, and various USB headers. The audio system, driven by Realtek 7.1 Surround Sound High Definition Audio CODEC, delivers an immersive experience.

The motherboard incorporates ASUS TUF PROTECTION features such as DIGI+ VRM, ESD Guards, TUF LANGuard, and SafeSlot Core+, ensuring durability and reliability. ASUS Q-Design elements, ASUS Thermal Solution with M.2 heatsinks and VRM heatsink design, ASUS EZ DIY features, and Aura Sync for RGB customization contribute to the motherboard’s user-friendly and aesthetic appeal.

Software features include ASUS-exclusive applications like Armoury Crate, AI Suite 3, and TUF GAMING CPU-Z, enhancing system management and customization. The motherboard also comes with a range of accessories, including SATA cables, Wi-Fi antenna, and a comprehensive user guide. Operating with Windows 11 and Windows 10 64-bit, the micro-ATX form factor makes it suitable for compact builds. The motherboard is backed by a 3-year replacement warranty with specific terms and conditions.

Categories: , , Tags: , , , , , , ,
Model TUF GAMING B760M-BTF WIFI
CPU Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for the CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU type.
Chipset Intel B760 Chipset
Memory 4 x DIMM, Max. 192GB, DDR5
7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration,
for more information please refer to the CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports the On-Die ECC function.
Graphics 1 x DisplayPort**
1 x HDMITM port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
– To ensure compatibility with the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
** M.2_3 slot shares bandwidth with PCIEX16(G4) slot. When the M.2_3 slot has been installed on a device, the PCIEX16(G4) slot will be disabled.
Ethernet 1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2×2 (20G) port (1 x USB Type-C)
2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C)
3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A + 1 x USB Type-C)
4 x USB 2.0 ports (4 x Type-A)Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
** USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playbackAudio Features
– Audio Shielding
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 (20G) port (1 x USB Type-C)
2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x USB Type-C)
3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x Clear CMOS button
Internal I/O Connectors Fan and Cooling-related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headersPower related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connectorStorage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 10-1 pin System Panel header
1 x Thunderbolt (USB4) header
Special Features ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/OASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-SlotASUS Thermal Solution
– M.2 heatsinks
– VRM heatsink design

ASUS EZ DIY
– Clear CMOS button
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeDIMM

Aura Sync
– Aura RGB header
Software Features ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– FAN Xpert 2+
– Power Saving
– Two-Way AI Noise CancellationAI Suite 3
– DIGI+ VRM
– PC CleanerTUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton 360 for Gamers (60 Days Free Trial)
WinRAR
UEFI BIOS

ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cablesMiscellaneous
1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming sticker
1 x M.2 Rubber Package
1 x Screw package for M.2 SSDDocumentation
1 x User guide
Operating System Windows 11, Windows 10 64-bit
Form Factor micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Warranty 3 Years Replacement Warranty
*(Terms and Conditions Applied)
