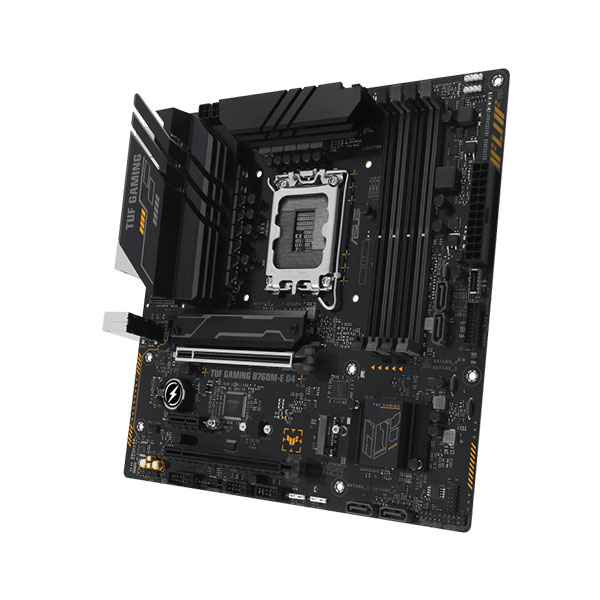

ASUS TUF GAMING B760M E D4 Intel 13th Gen mATX Motherboard 2 600x600 1
, ,

ASUS TUF GAMING B760M-E D4 Intel 13th Gen mATX Motherboard

  • Chipset: Intel B760 Chipset for 13th Gen, 12th Gen, Pentium, Celeron Processors
  • Socket: Intel Socket LGA1700
  • M.2 Slots: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • USB Ports: 7x Front ports, 6x Rear ports
  • Memory: 4 x DIMM slots, Max. 128GB, DDR4
Add to Wishlist
Compare

৳ 25,200

Add to Wishlist
Compare

ASUS TUF GAMING B760M-E D4 Intel 13th Gen mATX Motherboard

The TUF GAMING B760M-E D4 motherboard by ASUS is tailored for Intel Socket LGA1700, accommodating 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron processors. It supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 for enhanced performance. The Intel B760 Chipset, coupled with a durable 128 Mb Flash ROM UEFI AMI BIOS, forms a stable foundation for your system.

Featuring 4 DIMM slots supporting a maximum of 128GB DDR4 memory (5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory), it employs Dual Channel Memory Architecture, Intel Extreme Memory Profile (XMP), and OptiMem II technologies.

The motherboard is equipped with graphics capabilities, including 1 DisplayPort and 1 HDMI port, supporting up to 4K@60Hz. Expansion slots comprise 1 PCIe 4.0 x16 slot for Intel 13th and 12th Gen processors, 1 PCIe 4.0 x16 slot (x4 mode), and 1 PCIe 4.0 x1 slot for additional device connectivity.

Storage options include 2 M.2 slots (Key M) and 4 SATA 6Gb/s ports, offering versatility for Intel 13th and 12th Gen processors. Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. Networking is handled by a Realtek 2.5Gb Ethernet port, and a vertical M.2 slot (Key E) is provided for a separate Wi-Fi module (sold separately).

USB ports abound with rear USB featuring 2 USB 3.2 Gen 2 (10G) Type-A ports, 2 USB 3.2 Gen 1 (5G) Type-A ports, and 2 USB 2.0 Type-A ports. Front USB includes 1 USB 3.2 Gen 2 (10G) Type-C connector, 1 USB 3.2 Gen 1 (5G) header supporting 2 additional ports, and 2 USB 2.0 headers supporting 4 additional ports.

The Realtek 7.1 Surround Sound High Definition Audio CODEC enhances audio experiences, supporting jack-detection, multi-streaming, and front panel jack-retasking. Special features include ASUS TUF PROTECTION elements like DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, and Stainless-Steel Back I/O.

ASUS Q-Design elements like M.2 Q-Latch, Q-DIMM, Q-LED, and Q-Slot contribute to ease of use. The motherboard incorporates ASUS Thermal Solution with a flexible M.2 heatsink and VRM heatsink design. ASUS EZ DIY features ProCool, SafeDIMM, and AURA Sync compatibility with RGB headers.

Exclusive ASUS software such as Armoury Crate, AURA Creator, AURA Sync, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancelation, AI Suite 3, DIGI+ VRM, PC Cleaner, TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 Days Free Trial), and WinRAR enhance system management.

Backed by a 3-year brand warranty, this mATX form factor motherboard measures 9.6 inches by 9.6 inches (24.4 cm x 24.4 cm) and is designed for Windows 11 and Windows 10 64-bit operating systems. The package includes essential accessories, cables, and documentation for a hassle-free installation.

Categories: , , Tags: , , , , , , ,
Model TUF GAMING B760M-E D4
CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset Intel® B760 Chipset
Memory 4 x DIMM slots, Max. 128GB, DDR4
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/
3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Graphics 1 x DisplayPort**
1 x HDMITM port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth Vertical M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.
USB Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 (10G) ports(2 x Type-A)
2 x USB 3.2 Gen1 (5G) ports(2 x Type-A)*
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports*
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback”
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Realtek2.5Gb Ethernet port
3 x Audio jacks
1 x Vertical M.2 slot (Key E)
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x S/PDIF Out header
Special Features ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
– SafeDIMM
AURA Sync
– AURA RGB header
– Addressable Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
– AURA Creator
– AURA Sync
– Fan Xpert 2+
– Power Saving
– Two-Way AI Noise Cancelation
AI Suite 3
– DIGI+ VRM
– PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x TUF Gaming sticker
Documentation
1 x TUF Certification card
1 x User guide
Operating System Windows® 11, Windows® 10 64-bit
Form Factor mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Warranty 3 Years Brand Warranty.
