1X USB 3.2 GEN 1 TYPE-A, 1X USB 2.0, 1X 3.5MM HEADSET JACK
(AUDIO+MIC), 1X ARGB CONTROLLER
PRE-INSTALLED FANS
FRONT 3 X 120MM ARGB FAN (CP510-KGNN-S00)
REAR N/A
FAN SUPPORT
TOP 2X 120MM, 2X 140MM
FRONT 3X 120MM, 2X 140MM
REAR 1X 120MM
RADIATOR SUPPORT
TOP 120 / 240MM (MEMORY BAR HEIGHT LIMIT 35MM,
FIRST ASSEMBLE THE MEMORY AND THEN ASSEMBLE THE RADIATOR)
FRONT 120MM, 140MM, 240MM, 280MM
REAR 120MM
CLEARANCE
CPU COOLER 161MM
PSU 160MM
GFX 350MM (W/O FRONT FANS & RADIATOR)
CABLE ROUTING
18.5MM
DUST FILTERS
TOP, BOTTOM
POWER SUPPLY SUPPORT
BOTTOM MOUNT, ATX
SIZE MID
TOWER
DIMENSIONS
445 X 204 X 463MM (INCL. PROTRUSIONS), 436 X 204 XÂ 448MM (EXCL. PROTRUSIONS)

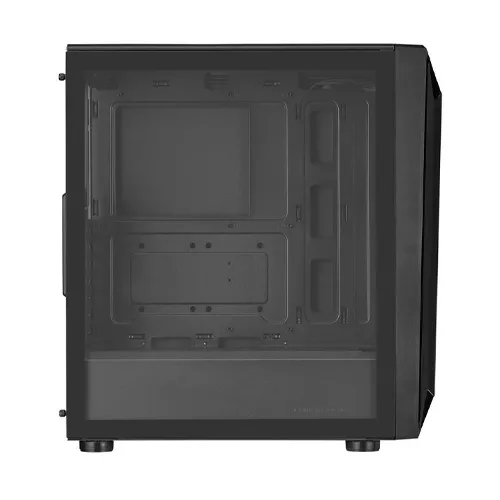

Cooler Master CMP 510 ATX Mid-Tower Case In Bangladesh
The Cooler Master CMP 510 ATX Is A Premium Mid-Tower Case That Combines Generous Airflow Performance With A Glowing ARGB Edge. Mesh Makes Up A Substantial Portion Of Its Structure To Provide Optimum Performance Potential.
Liquid-Cooling Support And The Capability To House A Total Of 6 Fans Ensures The CMP 510 Is Always Ready For Optimal Cooling Performance. Graphics Card Clearance Spans 350mm Long To Support The Latest, Largest Cards.
ARGB STRIP
A Glowing ARGB Edge Is Cut Into The Clean Geometry Of The Front Panel Design.
VERSATILE COOLING OPTIONS
Support For Up To Six Fans And Front, Top, And Rear Radiator Ensure That Performance Is Not Compromised.
LARGE FILTERED INTAKES
The Front Panel Is Constructed With A Substantially Large, Unrestricted Intake Grill To Provide Superb Airflow To The System.
FULL BLACK COATING & PSU COVER
Let Your System Stand Out With An All-Black Background And A PSU Cover To Hide Cables.
BREATHABLE POWER SUPPLY SHROUD
The PSU Cover Is Ventilated On Top Of The Power Supply Location, Which Allows Actively Cooled Units To Be Installed Either With The Fan Facing The Top Or Bottom, Also With The Possibility Of Installing Passively Cooled Power Supplies.
ROOM FOR UPGRADES
Support For Up To A 350mm Long Graphics Card, A 162mm CPU Tall Cooler, And Multiple Fans/Radiator Locations Provide Room For Upgrades To Stay Ahead Of The Game.
