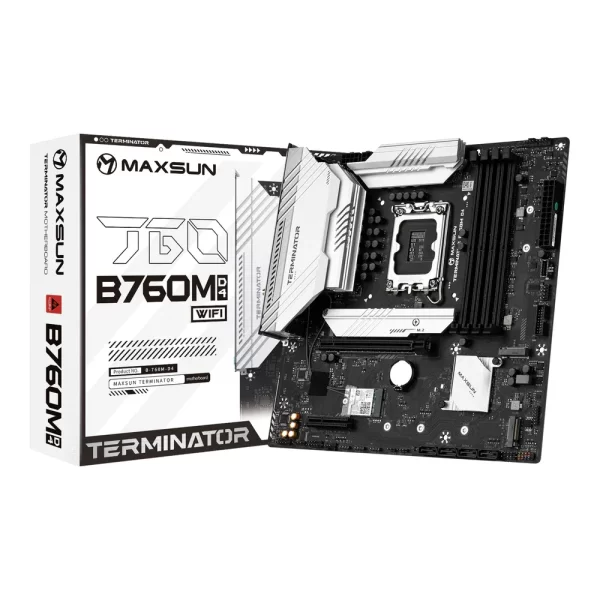

Maxsun MS-Terminator B760M D4 WIFI DDR4 LGA1700 Motherboard

Maxsun MS-Terminator B760M D4 WIFI DDR4 LGA1700 Motherboard

The Maxsun MS-Terminator B760M D4 WIFI DDR4 LGA1700 Motherboard is engineered to elevate your computing experience with its cutting-edge features and robust design. Here is specifications:

Chipset: Intel B760

CPU Support:

• Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold, and Celeron® Processors LGA 1700 socket

Memory:

• 4x DDR4 slots, Maximum Memory Capacity 128GB
• Memory Support DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz
• Supports Intel® XMP 2.0 OC
• Supports Dual-Controller Dual-Channel mode

Onboard Graphics:

• 1x Display Port 1.4
• 1x HDMI™ port (supports up to 4K@30Hz)
• Graphics specifications may vary between CPU types. Refer to www.intel.com for updates.

Expansion Slots:

• 1x PCIe 5.0 x16 slot
• 1x PCIe 3.0 x1 slot

Storage:

• M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices

USB:

• Front USB (Total 5 ports): 1x USB 3.2 Gen2x2 Type C, 2x USB 3.2 Gen1 Type A, 2x USB 2.0
• Rear USB (Total 8 ports): 2x USB 3.2 Gen1 Type A, 6x USB 2.0

LAN: Realtek® RTL8125BG 2.5G LAN

Wireless / Bluetooth:

• Intel® Wi-Fi 6 AX101
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz* (80MHz) up to 600Mbps
• Supports 802.11 ax
• Supports Bluetooth® 5.2

Audio: Realtek® ALC897 Codec, 5.1-Channel High Definition Audio

Internal I/O:

• Various connectors including power connectors, fan connectors, M.2 slots, SATA ports, audio, RGB, ARGB, TPM pin header, etc.

LED Feature: 4x Distributed Debug LED

Operating System Support: Windows® 11 64-bit, Windows® 10 64-bit

Form Factor: M-ATX, 245mm x 245mm

The Maxsun MS-Terminator B760M D4 WIFI DDR4 LGA1700 Motherboard is designed for high-performance computing needs, offering exceptional connectivity, data transfer speeds, and stability. With its robust construction and advanced features, it’s an ideal choice for gaming enthusiasts, content creators, and professionals alike.
