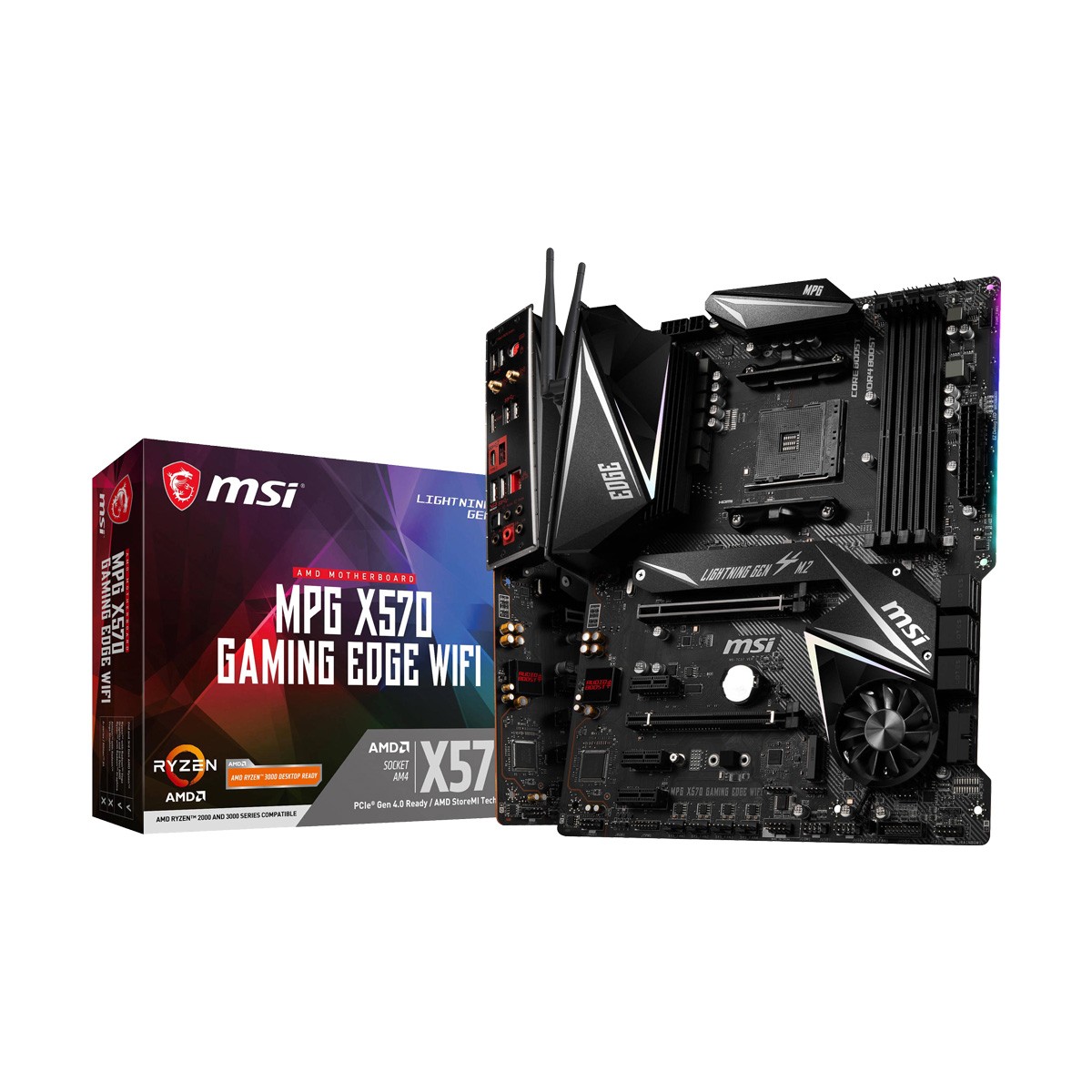

MSI MPG X570 GAMING EDGE WI-FI 2nd/3rd Gen AMD AM4 Socket Mainboard
Model – MSI MPG X570 GAMING EDGE WI-FI
CPU Sockets – AM4
Chipset – AMD X570 Chipset
Memory Channel – Dual Channel
Graphic – Onboard Graphics
Multi-GPU Support – 2-Way AMD CrossFire
Audio Chipset – Realtek ALC1220
Supported Operating System – Windows 10
Availability:
Available on backorder
৳ 22,000
Available on backorder
| Brand | MSI |
| Model | MSI MPG X570 GAMING EDGE WI-FI |
| Form factor | ATX |
| Sockets | AM4 |
| Chipset | AMD X570 Chipset |
| Supported CPU | AMD Ryzen 2nd and 3rd Generation / Ryzen with Radeon Vega Graphics Processors, AMD Ryzen 2nd Generation Radeon Graphics Desktop Processors |
| RAM type | DDR4 |
| RAM bus | 1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400+MHz |
| RAM max | 128GB |
| RAM slot | 4 |
| PCI Express x16 slot | 1x PCIe 4.0/ 3.0 x16 slot, 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode), 3x PCIe 3.0 x1 slots |
| SATA port | 6 x SATA |
| M.2 Slot | 2 x M.2 slots (PCIe 4.0 x4 or PCIe 3.0 x4 and 2242/ 2260/ 2280/ 22110 storage devices), (PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices) |
| Audio chipset | Realtek ALC1220 |
| Audio channel | 7.1-Channel |
| DirectX supoort | 12 |
| LAN chipset | Realtek 8111H Gigabit LAN |
| USB Port | 2 x USB3.2 Gen 2 Type-A, 4 x USB3.2 Gen 1, 6 x USB2.0 |
| HDMI port | 1 |
| Others | 2 x M.2 slots, 1x 4-pin CPU fan connector, 1x 4-pin water-pump connector, 4x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x TPM module connector, 1x Serial port connector, 1x Clear CMOS jumper, 1x Chassis Intru |
| Warranty | 3 year |
| M.2 Slot | Yes |
