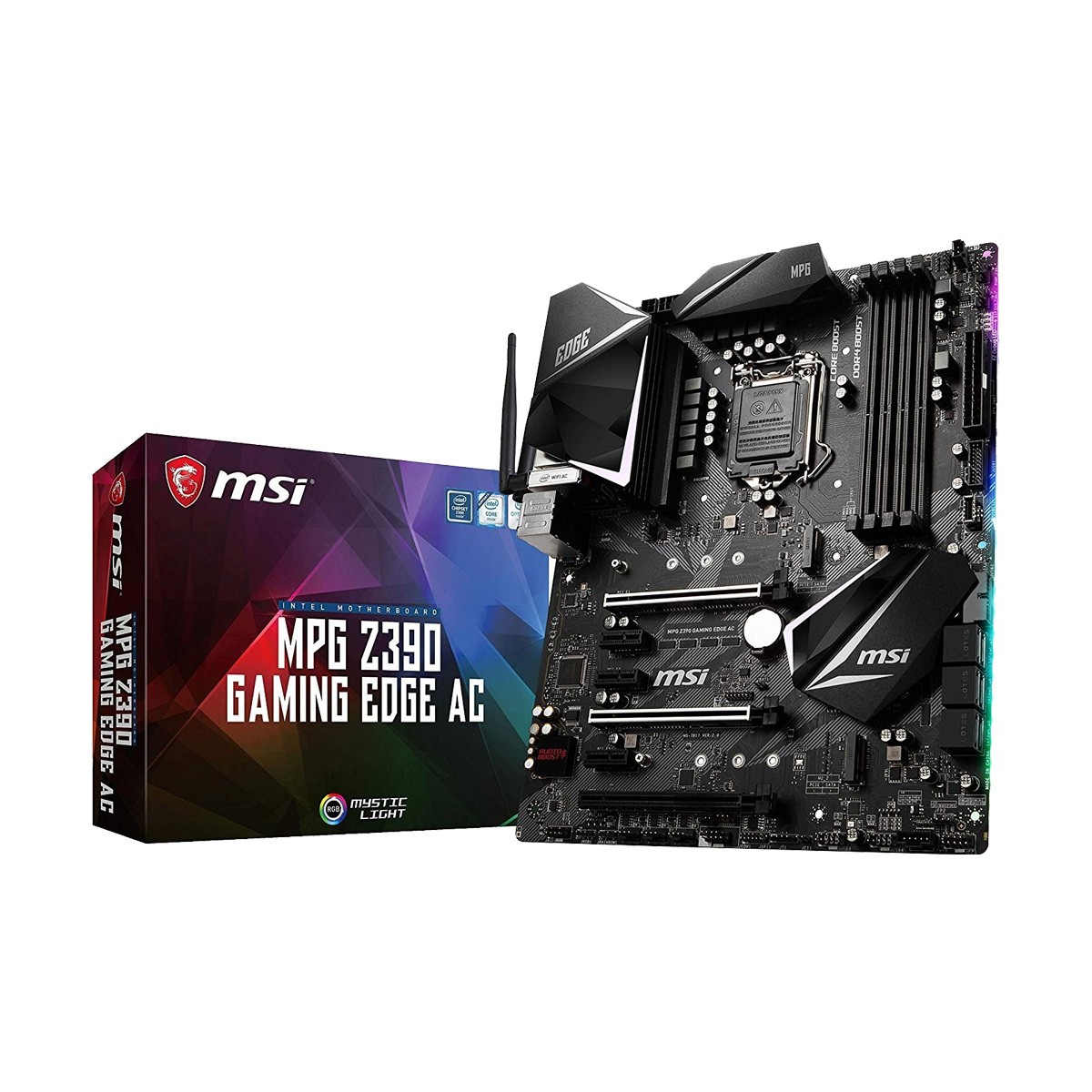

MSI MPG Z390 GAMING EDGE AC DDR4 8th/9th Gen Intel LGA1151 Soceket Mainboard
Model – MSI MPG Z390 GAMING EDGE AC
CPU Sockets – LGA1151
Chipset – Intel Z390
Memory Channel – Dual
Graphic – Onboard Graphics
Multi-GPU Support – 2-Way NVIDIA SLI, 3-Way AMD CrossFire
Audio Chipset – Realtek ALC1220P
Availability:
Available on backorder
৳ 17,400
Available on backorder
Brand | MSI |
Model | MSI MPG Z390 GAMING EDGE AC |
Form factor | ATX |
Sockets | LGA1151 |
Chipset | Intel Z390 |
Supported CPU | 9th/8th Generation Intel Core Pentium Gold / Celeron processors |
RAM type | DDR4 |
RAM bus | 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133MHz |
RAM max | 64GB |
RAM slot | 4 |
PCI Express x16 slot | 3 x PCIe 3.0 x16 slots, 3 x PCIe 3.0 x1 slots |
SATA port | 6 x SATA |
M.2 Slot | 2 x M.2 (up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices) |
Audio chipset | Realtek ALC1220P |
Audio channel | 7.1-Channel |
DirectX supoort | 12 |
LAN chipset | Intel I219-V Gigabit LAN |
LAN speed | 10/100/1000Mbps |
USB Port | 3 x USB3.1 Gen 2, 6 x USB3.1 Gen 1, 6 x USB2.0 |
HDMI port | 1 |
Others | 1 x DisplayPort port 1.2, 2 x M.2 slot, 1 x 4-pin CPU fan connector, 1 x 4-pin Water Pump connector, 1 x Serial port connector, 2 x System panel connectors, 1 x Thunderbolt Add-on Card Connector, 1 x TPM module connector, 2 x 4-pin RGB LED connectors, 9 m |
Warranty | 3 year |
