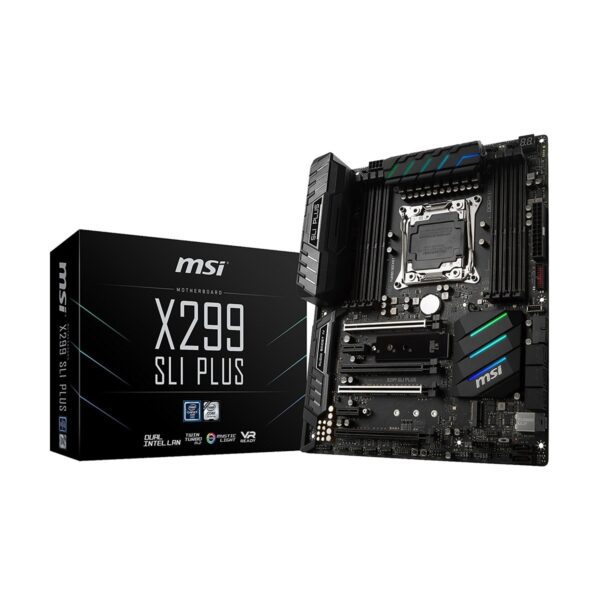

MSI X299 SLI PLUS DDR4 Intel LGA2066 Socket Mainboard
Model – MSI X299 SLI PLUS
CPU Sockets – LGA2066
Chipset – Intel X299
Memory Channel – Core X-series Processors (6-core above): Quad, Core X-series Processors (4-core): Dual
Multi-GPU Support – NVIDIA SLI, AMD CrossFire
Audio Chipset – Realtek ALC1220
Availability:
Out of stock
৳ 23,700
Out of stock
Brand | MSI |
Model | MSI X299 SLI PLUS |
Form factor | ATX |
Sockets | LGA2066 |
Chipset | Intel X299 |
Supported CPU | Intel Core X-Series Processor |
RAM type | DDR4 |
RAM bus | Core X-series Processors (6-core above): 4133+(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2667/ 2400/ 2133MHz, Core X-series Processors (4-core): 4500+(OC)/ 4400(OC)/ 4333(O |
RAM max | Core X-series Processors (6-core above): 128GB, Core X-series Processors (4-core): 64GB |
RAM slot | Core X-series Processors (6-core above): 8, Core X-series Processors (4-core): 4 |
PCI Express x16 slot | 4 x PCIe 3.0 x16 slots, 2 x PCIe 3.0 x1 slots |
SATA port | 8 x SATA |
Audio chipset | Realtek ALC1220 |
Audio channel | 7.1-Channel |
LAN chipset | Intel I219-V Gigabit LAN, Intel I211 Gigabit LAN |
LAN speed | 2 x 10/100/1000Mbps |
USB Port | 5 x USB3.1 Gen1, 8 x USB2.0 |
Others | 2 x M.2 slot, 1 x U.2 port, 1 x 4-pin CPU fan connector, 1 x 4-pin Water Pump connector, 4 x 4-pin system fan connectors, 1 x RGB LED connector, 1 x TPM module connector, 1 x Virtual RAID on CPU connector, 1 x Thunderbolt add-on card connector, 9 mounting |
Warranty | 3 year |
M.2 Slot | Yes |
