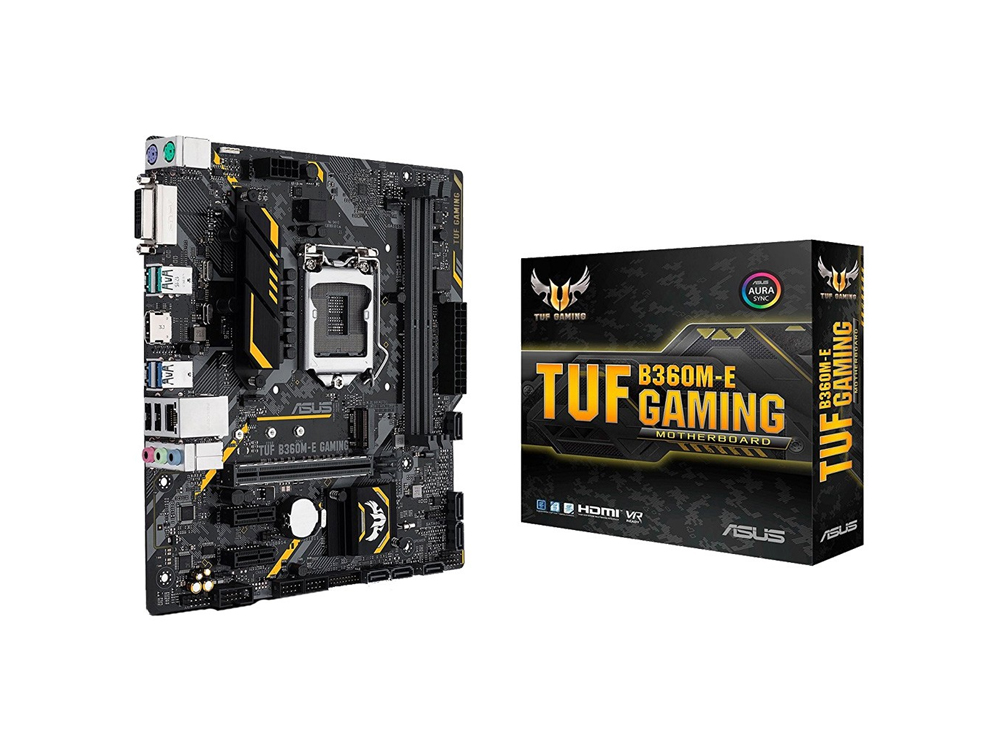

Asus TUF B360M-E GAMING DDR4 8th/9th Gen Intel LGA1151 Socket Motherboard
,

Asus TUF B360M-E GAMING DDR4 8th/9th Gen Intel LGA1151 Socket Motherboard

Asus
  • Model: Asus TUF B360M-E GAMING
  • CPU Sockets: LGA1151
  • Chipset: Intel B360
  • Graphics: Integrated Graphics
  • Audio Chipset: Realtek ALC887
  • BIOS Type: 1 x 128 Mbit Flash ROM
  • BIOS Model: UEFI AMI BIOS
Availability:

Out of stock

৳ 9,500

Out of stock

Brand Asus
Model Asus TUF B360M-E GAMING
Form factor Micro ATX
Sockets LGA1151
Chipset Intel B360
Supported CPU 9th/8th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron processors
RAM type DDR4
RAM bus 2666/ 2400/ 2133MHz
RAM max 32GB
RAM slot 2
PCI Express x16 slot 1 x PCIe 3.0/2.0 x16 (x16 mode), 2 x PCIe 3.0/2.0 x1
SATA port 6 x SATA
M.2 Slot 1 x M.2 Socket 3 (type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode))
Audio chipset Realtek ALC887
Audio channel 7.1-Channel
LAN chipset Intel I219V
LAN speed 10/100/1000Mbps
USB Port 2 x USB3.1 Gen 2, 4 x USB3.1 Gen 1, 6 x USB2.0
DVI port 1
HDMI port 1
Others 1 x M.2 Socket 3, 1 x RGB Header(s), 1 x COM port(s) connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x Chassis Fan connector(s) (1 x 4 -pin), 1 x System panel(s), 1 x Clear CMOS jumper(s), 3 x Audio jack(s)
Warranty 3 year
M.2 Slot Yes
