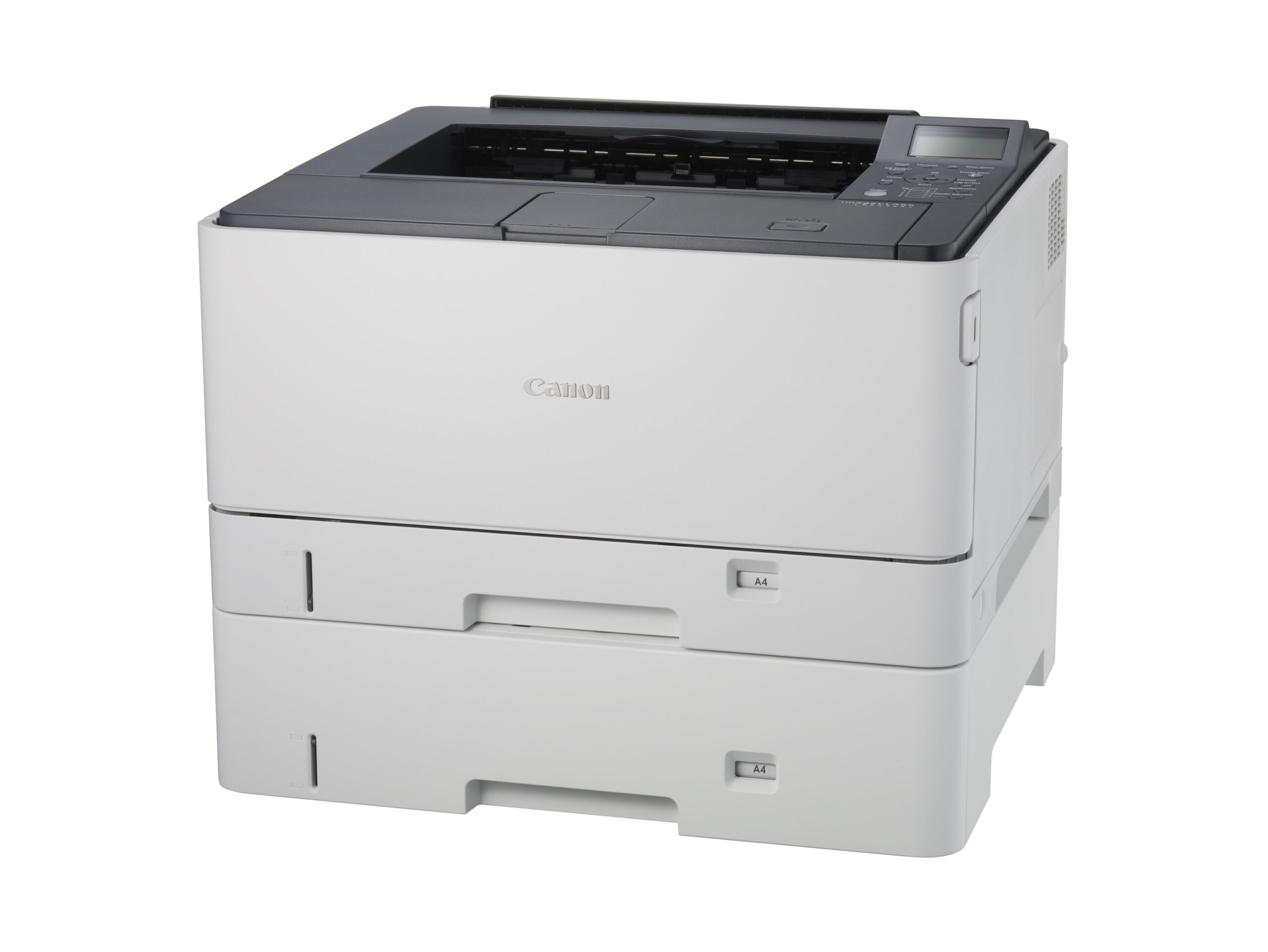

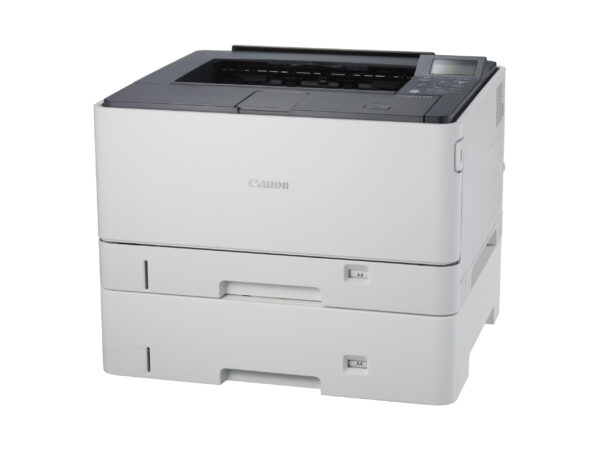

Canon imageCLASS LBP8780x Single Function Mono Laser Printer

  • Functions: Print Only
  • Output Color: Black & White
  • Print Speed:
    • Black: 40ppm (A4), 20ppm (A3)
    • Color: No
  • Paper Size Max.: A3
  • Interface (Built-in): USB, LAN

৳ 215,000.00

Canon imageCLASS LBP8780x Single Function Mono Laser Printer

The Canon Monochrome Laser Printer offers powerful printing capabilities with advanced features to meet diverse printing needs. Here’s a comprehensive overview:

Printing Method and Speed: Utilizing Monochrome Laser Beam Printing and On-Demand Fixing methods, the printer achieves a swift 40ppm (A4) / 20ppm (A3) monochrome print speed. Duplex printing for A4 operates at 40ppm (20spm).

Print Resolution and Quality: The printer delivers sharp prints with a base resolution of 600 x 600dpi. The Image Refinement technology enhances print quality to 1200 x 1200dpi (equivalent) and 2400 (equivalent) x 600dpi.

Warm-Up Time and First Print Out Time: With a quick 29-second warm-up time from power on and 17-second quick start, the printer minimizes waiting times. The first print out time (FPOT) is approximately 9.3 seconds.

Recovery Time and Print Language: The recovery time from sleep mode is rapid, with 0 seconds in Panel Off mode and 10 seconds or less in Deep Sleep. The printer supports various print languages, including UFRII, PCL5e/6, PostScript 3, PDF, and XPS.

Auto Duplex Print and Print Margins: Auto Duplex Printing is a standard feature, supporting paper sizes such as A3, B4, A4, and more. The print margins are adjustable with a minimum of 5mm on all sides (10mm for envelopes).

Direct Print and Paper Handling: Direct print via USB Host 2.0 supports formats like TIFF, JPEG, PDF, and XPS. The paper input capacity includes a Standard Cassette (250 sheets), Multi-Purpose Tray (100 sheets), and an optional Paper Feeder PF-F1 (max. 3 units, 550 sheets each). The maximum paper input capacity is 2,000 sheets.

Paper Size, Type, and Weight: The printer accommodates a range of paper sizes, including A3, B4, A4, and custom sizes. It handles various paper types such as plain, heavy, recycled, color, transparency, label, and envelope. The acceptable paper weight ranges from 60 – 199g/m2.

Paper Output and Connectivity: The paper output capacity is 250 sheets (face down) and 50 sheets (face up). Connectivity options include USB 2.0 High Speed, USB 2.0 Host (2 ports), and 10/100 Base-T / 1000 Base-T Ethernet. An SD Card Slot is also available.

Compatible Operating Systems: The printer is compatible with various operating systems, including Windows XP, Vista, 7, 8, Server editions, Mac OS 10.6 ~ 10.8.x, Linux, and Citrix.

Security Features and Mobile Printing: Security features include IPSec, IEEE802.1x, and Secure Print (with optional SD Card). The printer supports the MEAP function, and mobile printing is facilitated through Canon Mobile Printing.

General Specification: With 768MB of memory and a 5-line LCD display, the printer has dimensions of 514 x 532 x 303mm and weighs approximately 25.8kg (without cartridge).

Power Consumption and Toner Cartridge: The printer consumes a maximum of 1420W, with average power during operation at 670W and standby at 38W. The Energy Star TEC is 2.2kWh/week. The toner cartridges include Cartridge 333 (10,000 pages) and Cartridge 333 H (17,000 pages).

Monthly Duty Cycle and Recommended Print Volume: The printer has a robust monthly duty cycle of up to 100,000 pages and is recommended for a monthly print volume between 4,000 – 10,000 pages.

Optional Accessories: Optional accessories include the Paper Feeder PF-F1 (550-sheets), Universal Cassette UC-A1, Barcode Printing Kit-F1, and Canon SD Card-B1 (8GB) for secure print.

Printing Method Monochrome Laser Beam Printing
Fixing Method On Demand Fixing
Print Speed Mono: A4 / A3 40 / 20ppm
Duplex: A4 40ppm (20spm; sheets per minute)
Print Resolution 600 x 600dpi
Print Quality with Image Refinement 1200 x 1200dpi (equivalent)
2400 (equivalent) x 600dpi
Warm-Up Time From Power On: 29secs. or less
From Quick Start: 17secs. or less
Recovery Time (From Sleep Mode) Panel Off: 0sec.
Deep Sleep: 10secs. or less
First Print Out Time (FPOT) Approx. 9.3secs.
Print Language UFRII, PCL5e/6, PostScript 3, PDF, XPS
Standard Fonts PCL: 93 fonts
PS / PDF: 136 fonts
Auto Duplex Print Standard
Available Paper Size for Auto Duplex Print A3, B4, A4, A4R, B5, A5, Ledger, LTR, LTR-R, Legal*1, Exe
Print Margins 5mm – top, bottom, left and right
(Envelope: 10mm)
Direct Print (via USB Host 2.0) TIFF, JPEG, PDF, XPS
Paper Handling
Paper Input Standard Cassette:
(Based on 60 – 84g/m2)
250 sheets
Multi-Purpose Tray:
(Based on 60 – 90g/m2)
100 sheets
Optional Paper Feeder PF-F1:
(Based on 60 – 74g/m2)
550 sheets (max. 3 units)
Maximum Paper Input Capacity
(Based on 60 – 74g/m2):
2,000 sheets
Paper Size Standard Cassette: A3, B4, A4, A4R, B5, A5, Ledger, LTR, LTR-R, Legal*1, Exe, foolscap, 8K, 16K,
Custom Size available*2
Multi-Purpose Tray: A3, B4, A4, A4R, B5, A5, Ledger, LTR, LTR-R, Legal*1, Exe, STMT, foolscap, 8K, 16K,
Custom Media: 76.2 – 312.0mm x 127.0 – 470.0mm; 210.0 – 297.0mm x 470.1 – 1200mm (only with UFR II printer driver)
Optional Paper Feeder PF-F1: A3, B4, A4, A4R, B5, A5^, Ledger, LTR, LTR-R, Legal*1, Exe, STMT, foolscap, 8K, 16K,
Custom Size available*2
^ optional Universal Cassette UC-A1 and UFR II printer driver are required
Paper Type Plain, Heavy, Recycled, Color, Transparency, Label, Envelope
Paper Weight Standard Cassette: 60 ~ 120g/m2
Multi-Purpose Tray: 60 ~ 199g/m2
Optional Paper Feeder PF-F1: 60 ~ 120g/m2
Paper Output
(Based on 64g/m2)
Face-Down: 250 sheets
Face-Up: 50 sheets
Connectivity and Software
Standard Interface USB 2.0 High Speed, USB 2.0 Host (2 ports), 10 / 100 Base-T / 1000 Base-T Ethernet
Expansion Interface SD Card Slot
Compatible Operating Systems*3 Windows XP (32 / 64-bit), Windows Vista (32 / 64-bit), Windows 7 (32 / 64-bit), Windows 8 (32 / 64-bit), Windows Server 2003 (32 / 64-bit), Windows Server 2008 (32 / 64-bit), Windows Server 2008 R2 (64-bit), Windows Server 2012 (64-bit), Mac OS 10.6 ~ 10.8.x*4, Linux*4, Citrix
Security & Other Features
Security Function IPSec, IEEE802.1x, Secure Print (with optional SD Card)
Support MEAP function
Mobile Print Canon Mobile Printing
General Specification
Memory (RAM) 768MB
LCD Display 5-line LCD
Dimensions (W x D x H) 514 x 532 x 303mm
Weight Approx. 25.8kg (without cartridge)
Power Consumption Maximum: 1420W
During Operation: Approx. 670W (Average)
During Standby: Approx. 38W (Average)
During Sleep 1: Approx. 38W
During Sleep 2: Approx. 12W
During Sleep 3: Approx. 1.1W
Energy Star TEC (Typical Electricity Consumption) 2.2kWh/week
Noise Level During Operation: Sound Power Level: 7.30B or less
Sound Pressure Level (Bystander’s position): 56dB
During Standby: Sound Power Level: Inaudible
Sound Pressure Level: Inaudible
Operating environment Temperature: 10 ~ 30°C
Humidity: 20 ~ 80% RH (no condensation)
Power requirement AC 220 – 240V, 50 / 60Hz
Toner Cartridge*5 Cartridge 333: 10,000 pages (bundled: 10,000 pages)
Cartridge 333 H: 17,000 pages
Monthly Duty Cycle*6 Up to 100,000 pages
Recommended Monthly Print Volume 4,000 – 10,000 pages
Optional Accessories
Paper Feeder Paper Feeder PF-F1 (550-sheets)
Universal Cassette Universal Cassette UC-A1*7
Barcode ROM Barcode Printing Kit-F1
Secure Print Canon SD Card-B1 (8GB)
