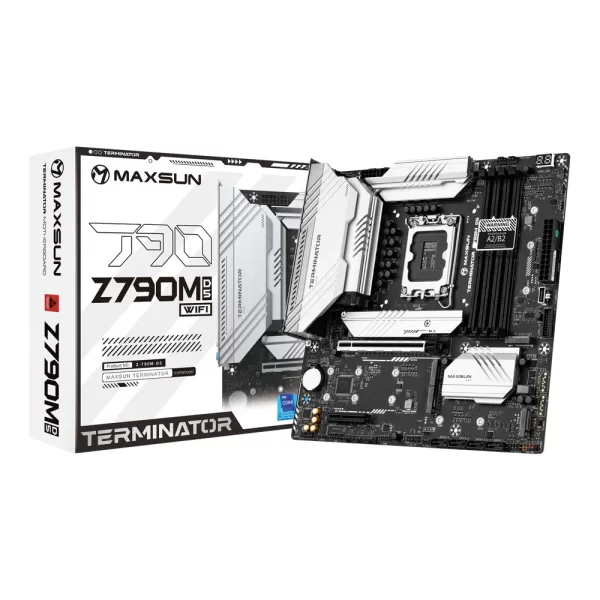

Maxsun MS-Terminator Z790M D5 WIFI DDR5 LGA1700 Motherboard

Maxsun MS-Terminator Z790M D5 WIFI DDR5 LGA1700 Motherboard

The Maxsun MS-Terminator Z790M D5 WIFI DDR5 LGA1700 Motherboard is engineered to deliver exceptional performance and reliability, making it an ideal choice for enthusiasts and professionals. Here specifications:

Chipset: Intel Z790

CPU Support:

• Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold, and Celeron® Processors
• LGA 1700 socket

Memory:

• 4x DDR5 slots, Maximum Memory Capacity 192GB
• Memory Support DDR5 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Supports Intel® XMP 3.0 OC
• Supports Dual-Controller Dual-Channel mode

Onboard Graphics:

• 1x Display Port 1.4
• 1x HDMI™ port (supports up to 4K@30Hz)
• Graphics specifications may vary between CPU types. Refer to www.intel.com for updates.

Expansion Slots:

• 1x PCIe 5.0 x16 slot
• 1x PCIe 3.0 x4 slot

Storage:

• M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
• M.2_5 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices

USB:

• Front USB (Total 6 ports): 1x USB 3.2 Gen2x2 Type C, 2x USB 3.2 Gen1 Type A, 3x USB 2.0
• Rear USB (Total 9 ports): 1x USB 3.2 Gen2x2 Type C, 4x USB 3.2 Gen1 Type A, 4x USB 2.0

LAN: Realtek® RTL8125BG 2.5G LAN

Wireless / Bluetooth:

• Intel® Wi-Fi 6E AX211
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3

Audio: Realtek® ALC897 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output

Internal I/O:

• Various connectors including power connectors, fan connectors, M.2 slots, SATA ports, audio, RGB, ARGB, TPM pin header, etc.

LED Feature: 4x Distributed Debug LED

Operating System Support: Windows® 11 64-bit, Windows® 10 64-bit

Form Factor: M-ATX, 245mm x 245mm

The Maxsun MS-Terminator Z790M D5 WIFI DDR5 LGA1700 Motherboard is designed to provide exceptional performance, stability, and connectivity for demanding computing tasks, making it an excellent choice for gaming, content creation, and professional use.
