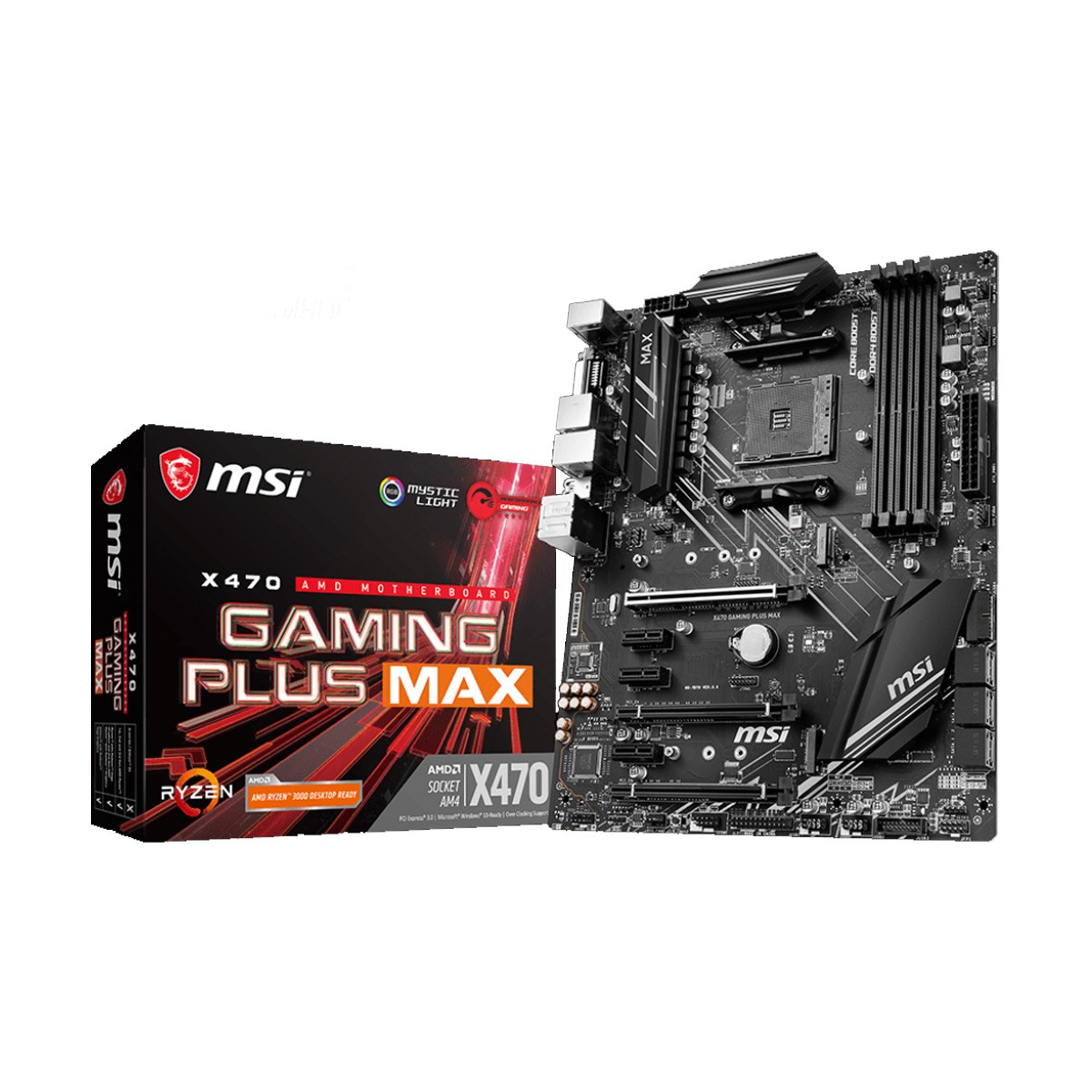

MSI X470 Gaming Plus Max DDR4 AMD AM4 Socket Mainboard
Model – MSI X470 Gaming Plus Max
CPU Sockets – AM4
Chipset – AMD X470 Chipset
Memory Channel – Dual Channel
Graphic – Onboard Graphics
Multi-GPU Support – 3-Way AMD Crossfire
Availability:
Out of stock
৳ 11,500
Out of stock
Brand | MSI |
Model | MSI X470 Gaming Plus Max |
Form factor | ATX |
Sockets | AM4 |
Chipset | AMD X470 Chipset |
Supported CPU | AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics |
RAM type | DDR4 |
RAM bus | 1866/ 2133/ 2400/ 2667 /2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133MHz |
RAM max | 64GB |
RAM slot | 4 |
PCI Express x16 slot | 2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4), 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode), 3 x PCIe 2.0 x1 slots |
SATA port | 6 x SATA |
M.2 Slot | 2 x M.2 slot (supports PCIe 3.0×4 or PCIe 3.0×2, 2242/ 2260 /2280/ 22110 storage devices, supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices) |
Optane Memory Support | No |
Audio chipset | Realtek ALC892 |
Audio channel | 7.1-Channel |
DirectX supoort | 12 |
LAN chipset | Realtek 8111H Gigabit LAN |
LAN speed | 10/100/1000Mbps |
USB Port | 6 x USB3.2 Gen 2 Type-A, 4 x USB3.2 Gen 1 Type-A, 6 x USB2.0 |
DVI port | 1 |
HDMI port | 1 |
Others | 2 x M.2 slot, 1 x 4-pin CPU fan connector, 1 x 4-pin PUMP fan connector (supports up to 2A), 4 x 4-pin system fan connectors, 1 x Serial port connector, 1 x Parallel port connector, 2 x 5050 RGB LED strip 12V connectors, 1 x TPM module connector, 1 x Fron |
Warranty | 3 year |
M.2 Slot | No |
