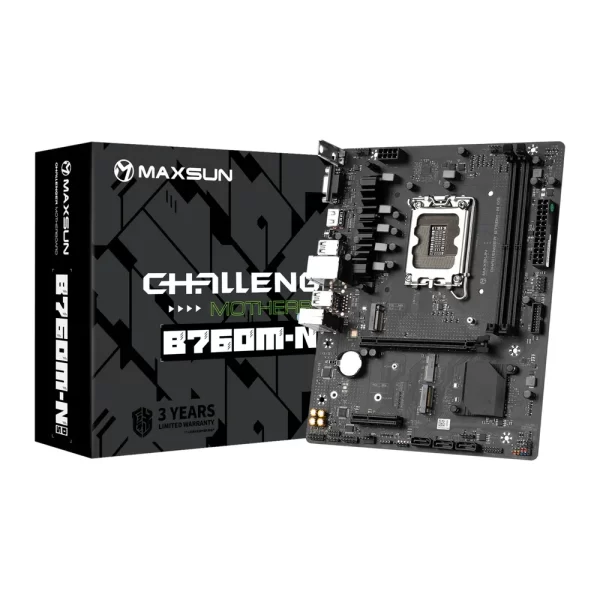

Maxsun presents the MS-Challenger B760M-N D5 DDR5 LGA1700 Motherboard, a high-performance solution designed to enhance your computing experience. Here’s an overview of its technical specifications:

Chipset: Intel B760

CPU Support:

• Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold, and Celeron® Processors
• LGA 1700 socket

Memory:

• 2x DDR5 slots, Maximum Memory Capacity 96GB
• Memory Support DDR5 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Supports Intel® XMP 3.0 OC
• Supports Dual-Controller Dual-Channel mode

Onboard Graphics:

• 1x VGA (Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz)
• 1x HDMI™ port (supports up to 4K@30Hz)
• Graphics specifications may vary between CPU types. Refer to www.intel.com for updates.

Expansion Slots:

• 1x PCIe 4.0 x16 slot
• 1x PCIe 3.0 x4 slot

Storage:

• M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
• 3 x SATA 6Gb/s ports
• Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices

USB:

• Front USB (Total 6 ports): 2x USB 3.2 Gen1 Type A, 4x USB 2.0
• Rear USB (Total 6 ports): 4x USB 3.2 Gen1 Type A, 2x USB 2.0

LAN: Realtek® RTL8111H 1G LAN

Audio: Realtek® ALC897 Codec, 5.1-Channel High Definition Audio

Internal I/O:

• Various connectors including power connectors, fan connectors, M.2 slots, SATA ports, CLR_CMOS, BUZZER, Front Audio, COM port, F_PANEL, TPM pin header, SPDIF, RGB, etc.

LED Feature: 4x Distributed Debug LED

Operating System Support: Windows® 11 64-bit, Windows® 10 64-bit

Form Factor: M-ATX, 245mm x 190mm

The Maxsun MS-Challenger B760M-N D5 DDR5 LGA1700 Motherboard offers a blend of performance, stability, and connectivity, making it an ideal choice for enthusiasts and professionals seeking a reliable computing solution. With its robust power supply, high-speed memory support, versatile expansion options, and comprehensive warranty, it provides users with a seamless and dependable computing experience.
